Multi-Point to Point Contact Closure Relay 2-Channel 10-Amp
Multi-Point to Point Contact Closure

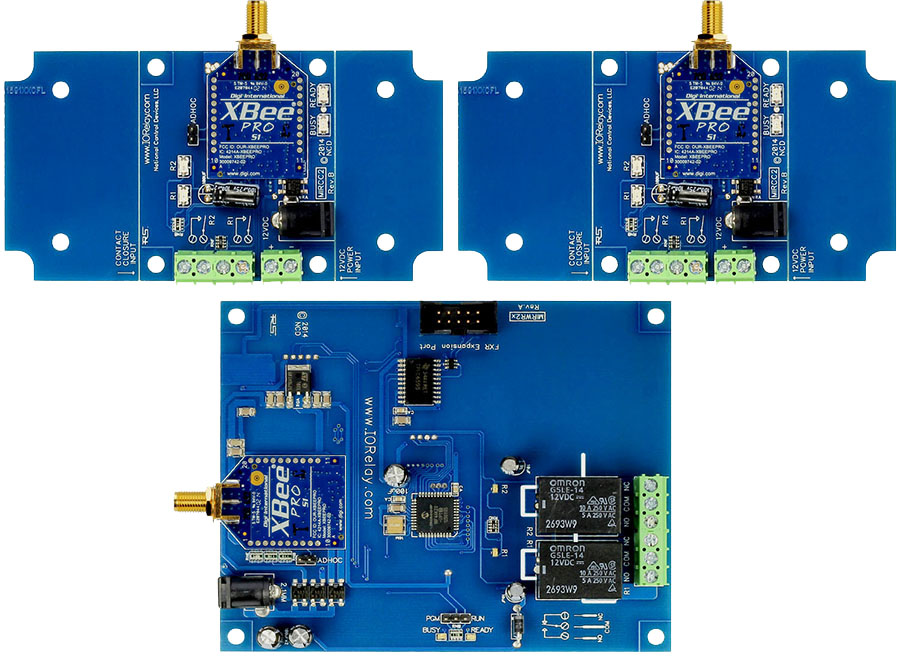

The MirWR210 boards contact closure inputs in multiple locations control relays in a single location. The sender boards are equipped with
contact closure input, used to control relays on the receiver board. Two relays are installed on the Receiver Board and up to eight remote locations
can be added (two are included in the price show here).
MirMR210 The Ideal Choice
The relays on the receiver board can be used to interrupt the power of a device you are switching and also as a dry contact closure output.  The
MirWR210 is designed for applications where multiple locations may need to trigger a single relay wirelessly.
Multi-Point to Point Contact Closure Relay 2-Channel 10-Amp
The MIRWR210 has one relay on the receiver board and can have up to eight remote locations that can all control the single receiver board. All Sender boards will have one contact closure input and any location can toggle the relay on or off. Contact closure inputs such as buttons, switches or other electronic devices (no voltage) attached to inputs on the sender boards will trigger the relays on the receiver board. The Sender
boards have an input while the Receiver board has the relay. When an input on any of the Sender boards are tripped by a contact closure the relay on a Receiver board is energized and will remain energized until the contact closure is released from any of the sender boards. Communication between the Sender boards and Receiver board is Wireless. Pricing shown on our web site indicates pricing for two contact closure sender boards and one receiver board. More sender boards can be added at checkout up to 8 locations.
Order of Operations
Contact closure inputs are read on a sender board
Data is sent to receiver board wirelessly to turn on or off relays
Remote Sender Locations
The remote locations (sender boards) communicate wirelessly from up to eight different locations. These locations will have to be in range of the receiver board which can be up to 1 mile (1.6km), for more see 802.15.4 Modules below. Each location will have your choice of one 5, 10, 20 or 30-amp relay onboard. The receiver board will receive a command from one of the the sender boards when a contact closure input is tripped to trigger the relay from different location. Additional remote locations can be added at a later date but all married boards in the system will need to be sent back for configuration.
The sender board and each receiver board is equipped with a Wireless 802.15.4 Module. The wireless module adds wireless communications to the board using an 802.15.4 wireless protocol and will only communicate with it's paired modules. The module is powered from the board and the board itself will require 12 volts of power and can be hard wired or you can purchase a "wall wart" type Power Supply at checkout.
The wireless range or distance the boards will be able to effectively communicate with each other has a "Standard Range"of 1-Mile (1.6km). This includes a small external antenna that can be positioned or placed outside of an enclosure. Hills, Trees, and Buildings will greatly reduce communication range of all wireless devices, so practical distances may be less.
900 MHz with Mesh Versions
MirW controllers are also available in a 900 MHz Mesh option with a range of 2-miles! The 900 MHz version requires a pathway no greater than 2-miles between the relay controller and the any of the transmitters. The 900 MHz Mesh version will pass data from transmitter to transmitter until it finds the receiver. With the Mesh option all transmitters do not have to be line-of-site to the receiver, only one of them does! 1-Mile option is faster than the 900 MHz with Mesh option. Expect reaction time of the 1-Mile version in under a second. Expect reaction time of the 900 MHz Mesh version within 5 seconds, but may take up to 30 seconds depending on your installation. Multiple 1-Mile and 2-Mile sets of controllers can exist in the same location without significant interference. All MirW series controllers come with an external antenna.
Who’s Qualified to Use the MirW Series?
Anyone. The MirW Series Controllers are very consumer-friendly devices that are married together through software and only require some wiring by the end user. Whether an electronics engineer or a home hobbyist, almost anyone is qualified to use the MirM Series controllers. A Quick Start Guide is will be available soon in the resources section to the right or bottom of this page.
Contact Closure Inputs
A MirW controller has multiple contact closure input boards that has enough inputs to control each relay at the single location. The inputs can be wired to trigger any of the relays on the receiver board. The inputs are contact closure inputs only - no voltage can be applied to these inputs. Buttons, switches, other relays or other electronic devices can be used as an input and trigger the remote relays as long as no voltage is applied.
MirW Controllers have relays integrated into the receiver board that all the reomote locations will control. A relay is similar to a switch, the only difference between a switch and a relay is the actual mechanism for changing the on/off status of the switch. On a switch, you manually push on a piece of metal or plastic to operate the switch. On a relay, an electric current is used to operate the switch. Relays do NOT provide a voltage output, they provide a contact closure output and simply interrupt the power to the device you are switching. Wiring to a relay will be slightly different depending on the model of MirM controller you choose. A relay can be used as a contact closure input. If your job requires a single contact closure input to trigger other multiple contact closure inputs this will do the job well.
Perhaps the most overlooked aspect of relay control is proper handling of inductive loads. Inductive loads can best be defined as anything with a magnetic coil, such as a motor, solenoid, or a transformer. Controlling a inductive load using this relay controller requires the use of induction suppression capacitors. The purpose of this capacitor is to absorb the high voltages generated by inductive loads, blocking them from the contacts of the relay. Without this capacitor, the lifespan of the relay will be greatly reduced. Induction can be so severe that it electrically interferes with the microprocessor logic of our controllers, causing relay banks to shut themselves down unexpectedly. In the case of Ethernet devices, customers may experience loss of communications until the device is reconnected. Capacitors that we offer are available at checkout and you can find them on our Induction Page for their use and setup video.
We have looked at the interface and the MirW Concept now let's take a look at the board design itself. These controllers allow you to trigger a relay simply by using a contact closure (no voltage). All relays are electronically latched, depending on the contact closure input that you are using you can momentarily keep the relay on or use an Alternate Action Switch can trigger relay on then off. The relay on the receiver boards can also be used as a contact closure input in applications that require a contact closure trigger point. Fully tested before they leave the production facility each MirW pair is ready to stand up to rigorous demands from heat, cold or vibration. The best test of all is the numerous boards in the field from customers all over the world in all sorts of conditions. Take it from us, these controllers will hold up!
Break-A-Way Tabs for a Smaller Design
The MirW Sender Boards have a great feature where space is a premium - Break-A-Way Tabs. The Break-A-Way Tabs allow most receiver boards to fit in an optional undrilled plastic enclosure. Snap off the Break-A-Way Tabs and you have a receiver board with a smaller profile when you need to fit in a tight space.
Order your MirW led free and be RoHS Compliant. If your requirements are for RoHS compliant parts this board is manufactured with RoHS compliant led free parts and solder.
5-Year Warranty/Money Back Guarantee
MirW controllers are guaranteed against manufacturing and functionality defects for a full 5 years! Not to mention a 30-day money back guarantee! If for any reason you are not happy with a relay purchased from National Control Devices, simply return it within 30 days and we will give you your money back! Controllers that are damaged by our customers will not of course be warranted under any circumstances.
MirW series controllers are designed for long life, you should expect to get years of service from your controller and literally 2-million cycles from the relays on board. With a 5-year warranty and a money back guarantee you have nothing to loose! Place your order now, while everything is in front of you.
The boards sold are brand new units shipped from our manufacturing facility conveniently located in Missouri. These boards are completely tested before they are released for shipping With so many boards on our site it is impossible to stock boards, please allow 5 to 7 days production time for your order to ship.
Multi-Point Contact Closure Is Here!
A more streamlined manufacturing process brings a more durable, reliable and better relay board to the market. Here's a lists of great features:
User Friendly Board Design
Surface Mount Allows for a Smaller Board
Break-A-Way Tabs Lets you Decide the Board's Size
Screw Terminal Contact Closure/Relay Connections
Wirelessly Switch from Multiple Locations
Contact Closure Inputs Control Relays in a Single Locations
Relay Control from Each Location
No Computers, No Programming, No Configuration
Power Supply Available
Reliable Power Means Reliable Switching
The PWR12 is regulated power supply providing clean power necessary for the performance of these boards. The PWR12 US power supply is a
120VAC to 12VDC 1.25A 60Hz regulated power supply and it plugs into the barrel connector on the board. The output connector is a 2.1mm I.D. x 5.5mm
O.D. x 9.5mm R/A barrel connector.
an inductive load using our relay controllers requires the use of induction suppression capacitors. The purpose of this capacitor
is to absorb the high voltages generated by inductive loads, blocking them from the contacts of the relay. Without this capacitor,
the lifespan of the relay will be greatly reduced. Induction can be so severe that it electrically interferes with the microprocessor
logic of our controllers, causing relay banks to shut themselves down unexpectedly.
Simple Push Button
Push-On Push-Off Alternate Action Switch or Push-On Momentary Switch are available at checkout. Great for bench testing!
Data Sheets & Quick Start Guides
Below are the Data Sheets Quick Start Guides for this board. These are the guides that will help you communicate and
configure this board.
