The RPBR15PL_KEYFOB is a refurbished board that is backed by our normal 30-day return policy. These boards were returned with their
Break-A-Way Tabs removed so they will not fit in our normally offered case. Each board has completed the normal testing process
before being released to us for sale and are 100% functional in every way and have the current ProXR firmware installed.
Universal Key Fob
The RPBR15PL_KEYFOB Universal Key Fob allows users to control relays by a simple push of a button through a key fob you hold in your hand. The
key fob can be used for simple on/off actions or configured for more complex actions with each button press.
It's Got Possibilities
The RPBR15PL_KEYFOB can be paired with up to 40 key fobs, allowing for multiple people to have fobs to control the relay. KFX
modules reach working distances of 750 feet - line of site!! If you need multiple boards, each key fob can be paired with as many boards as needed.
You Configure the Action
When a button is pressed on the Key Fob, the KFX Receiver will send the command to the board. You will configure what this command is!
It can be a simple toggle on/off command or complex commands including delays. Momentary commands can easily be configured with button
press and button release events. Push a button and the relay energizes, release the button and the relay de-energizes.
- Fully Tested and Working Board
- Break-A-Way Tabs Removed
- Returnable Within 30-Days
1 5-Amp Relay Installed
- Single Pole Double Throw (SPDT) Relay
- Temperature Rating -40° C to 85° C
Programmable Key Fob
- Distance 750 to 1000 Feet
Pairing Module to Key Fob
- Pair up to 40 Key Fobs Per Board
- Pair Key Fob to Multiple Boards
Many Button Commands Available
- Momentary, Active Only When Pushed
- Toggle, Push On - Push Off
- Add Delay for Auto Shut-Off Function
Key Fob Pairing
The key fobs can be paired to a specific module or board. If you have multiple boards within range the key fob will only communicate to it's paired board. Key Fobs can also be paired to multiple boards and if they are within range all will energize with a button push.
Easy Key Fob Control
If your application requires you to control a relay from a wireless remote control, then our Key Fob Relay boards will offer the most powerful solution available on the market today. Not to be confused with single function low-cost solutions, our Key Fob Relay boards are years ahead! Configure your Key Fob Buttons to control relays in just about any way you can think of!
Key Fob Functions
A button push on the key fob can be set for a simple on/off function and so much more! Most users use the key fob as a toggle or momentary setting. The toggle command is a push-on push-off command push a button and the relay will remain energized until the button is pushed again to turn it off. A push and release command can be set for a momentary command, when the button is pushed the relay energizes and when you release the button the relay turns off. Either of these commands will be set before your board ships. More complicated commands can be configured as well! Relay groupings if you want one button to control more than one relay. Time delays can be set where one button push can control the relay for a prediturmined time and the relay will turn off automatically!

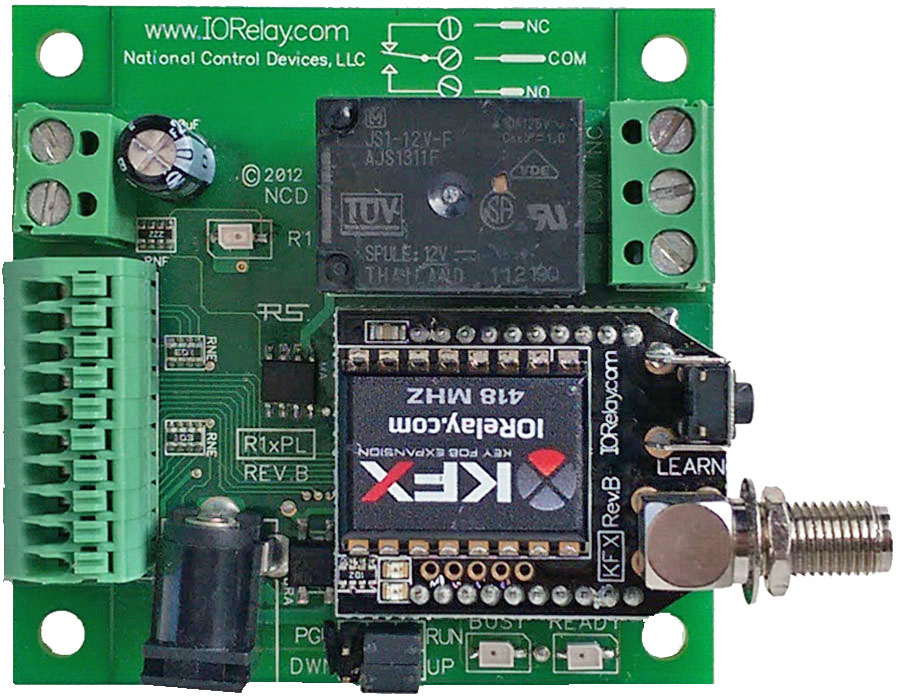

This board is equipped with a KFX Module. The KFX communications module adds key fob capabilities to the board. Configuring the board is done using Base Station Sofware, a free download. Point and click configuration using a numerical command set get's the action your looking for for each button push. We'll even do the setup for you, choose toggle or momentary at checkout above!
Here's a brief list of some of the more common commands used when a button is pushed on the key fob.
Toggle and Momentary Commands
Turn Off All Relays Then Turn On a Specific Relay
Relay Timers: Relay Energized for a Specific Time
Relay Pulse Commands
Relay Grouping: Controlling Multiple Relays Together
Relay Flashing Commands
Key Fob Range
The rated range of the MS series Key Fobs is 750 feet (228 meters). The MS 8-Button Key Fob with an external antenna is rated at 1,000 feet (304 meters). Key Fob range can depend on many factors. The maximum ratings are achieved in an outdoor environment with clear line-of-sight and minimal radio interference (in the country).
Up to 40 Key Fobs
With a single KFX receiver module, users may associate up to 40 key fobs, including 1, 2, 4 and 8-Buttons (available at checkout). Every Key Fob paired with a KFX Receiver will perform the exact same function as another Key Fob paired with the same KFX Receiver. It is not possible for each remote to be separately identified and generate different data for. Put simply, every remote does exactly the same thing when paired with the same KFX Receiver.
ZigMo Configuration Kit
The KFX Receiver Module is configured using Base Station Software (a free download), and must be plugged into the ZIGMO Configuration Board only during configuration. Only one ZIGMO is needed regardless of the number of KFX Receivers you intend to use. The ZIGMO acts as an interface between your computer and the KFX Receiver, allowing you to define the Baud Rate, and Data Bytes that are transmitted for each Key Fob button Press. The ZIGMO is included with the KFX Integration Kit and available at checkout. Key Fob Configuration
Who’s Qualified to Use the Key Fob Series?
Some computer skills required. The Key Fob Relays do not require programming, simply configure the module with the included Base Station Software. While programming is not required and simple functions can be done rather easily with basic computer skills, complex events can be configured which will require some understanding and patience.
Perhaps the most overlooked aspect of relay control is proper handling of inductive loads. Inductive loads can best be defined as anything with a magnetic coil, such as a motor, solenoid, or a transformer. Controlling a inductive load using this relay controller requires the use of induction suppression capacitors. The purpose of this capacitor is to absorb the high voltages generated by inductive loads, blocking them from the contacts of the relay. Without this capacitor, the lifespan of the relay will be greatly reduced. Induction can be so severe that it electrically interferes with the microprocessor logic of our controllers, causing relay banks to shut themselves down unexpectedly. In the case of Ethernet devices, customers may experience loss of communications until the device is reconnected. Capacitors that we offer are available at checkout, for more information view our Induction Suppression Video.
Pairing key fobs to the board is as simple as pushing a button on the module, pushing all the buttons on the key fob then pushing the module button again. Pushing the module button for 10-seconds will un-pair all the paired key fobs. Up to 40 key fobs can be paired to each module and since they are manually paired they can be paired to multiple boards or won't interfere with any board it's not paired to.
1-Button Key Fob OTX-418-HH-KF1-MS
Compatible with KFX Modules
Momentary or Toggle Configurations
2-Button Key Fob OTX-418-HH-KF2-MS
Compatible with KFX Modules
Momentary or Toggle Configurations
4-Button Key Fob OTX-418-HH-KF4-MS
- Program Each Independently
- Control Different Relays
- Control One Relay Differently
8-Button Key Fob OTX-418-HH-CP8-MS
Program Buttons Independently
Great for 4-Relay applications
- One Button On
- One Button Off
8-Button w/Antenna OTX-418-HH-LR8-MS
Longer 1000' Range
Small External Antenna
Great for 4-Relay applications
- One Button On
- One Button Off
5-Packs & 10-Packs OTX-418-HH-KF4-MS
Key Fobs are available in money saving 5-packs and 10-packs. Look for them at Checking out.
Refurbished boards have the most current firmware and face the same strict testing procedures that all our boards undergo. This B-Stock or Refurbished board is a fully working board that may have slight scratches or blemishes that do not effect the operation of the board. The board may be an overstock or returned from a customer.
This board may not have a communication Interface installed and you have the ability to select the interface you would like at checkout. The interface must be selected of you will not be able to communicate to the board.
There are most likely limited quantities of this board available. We do offer quantity pricing on our boards and can offer this if there is sufficient quantities available.
ProXR Lite Relay
In this tab we'll take a look at the board design itself. The ProXR Lite series controllers are machine manufactured for a highly accurate and reliable design. Fully tested before they leave the production facility each ProXR Lite controller is ready to stand up to rigorous demands from heat, cold or vibration. The best test of all is the numerous boards in the field from customers all over the world in all sorts of conditions. Take it from us, these controllers will hold up!
Unlike it's big brother, the ProXR Series, the ProXR Lite series controllers are NOT expandable. The firmware still thinks 256 relays are available but the relay portion of the controller only responds to the first 1, 2, 4 or 8 relays in Bank 1.
Full ProXR Enhanced Firmware Installed
This board has ProXR Firmware installed that responds to the full ProXR Command Set - it's just not expandable. The ProXR Firmware is the industry leading firmware for controlling relays with more commands and functionality than any other board on the market. The list of commands and parameters this board is capable of is extensive. ProXR Enhanced firmware has more commands, more functionality and better control than any other manufacturer! For a detailed list of all the commands with descriptions see our ProXR Enhanced Command Set.
Essential Power Requirements
Applying Good clean power to the board is essential for the operation of the board. Not only for the switching of the relays but the firmware that processes the commands. Without good steady clean power from a regulated power supply the board simply will not function correctly. All boards on the site require 12 VDC power. The PWR12 US power supply is a 120VAC to 12VDC 1.25A 60Hz regulated power supply and it plugs into the barrel connector on the board. The output connector is a 2.1mm I.D. x 5.5mm O.D. x 9.5mm Female R/A barrel connector. We also carry an international power supply with interchangeable adapters for international customers. Learn More
Read Analog Sensors
We did NOT skip the Analog Input portion of the ProXR Lite. All ProXR Lite controllers offer a 8-Channel 8/10-Bit Analog to Digital Converter in addition to relay control. Read and control from 8 sensors per board from 0 to 5 volts! A/D inputs are ideal for reading the on/off status of switches. Simply position the Up/Down jumper in the UP Position and connect a switch between input and ground, software may then be used to monitor the contact closure status of your switch. AD inputs can also be used for reading variable resistance signals. Position of Up/Down jumper should also be in UP position for reading variable resistance signals. The board will then will return a value between 0-255.
SPDT Relay Installed
This device has SPDT relays installed. SPDT Single Pole Double Throw Relays have three connections - Common, Normally Open, and Normally Closed. When the relay is off, the common is connected to the normally closed connection of the relay. When the relay coil is energized, the Common swings over to the Normally Open Connection of the Relay. You can wire the device you are switching to either the Normally Open or the Normally Closed position.
ProXR series controllers are designed for long life, you should expect to get years of service from your controller and literally 2-million cycles from the relays on board. With a 5-year warranty and a money back guarantee you have nothing to loose! Place your order now, while everything is in front of you.
This board is led free and RoHS Compliant. If your requirements are for RoHS compliant parts this board is manufactured with RoHS compliant led free parts and solder.
Break-A-Way Tabs for a Smaller Design
The ProXR Lite relays have a great feature where space is a premium - Break-A-Way Tabs. The Break-A-Way Tabs allow most boards to fit in an optional undrilled plastic enclosure. Snap off the Break-A-Way Tabs and you have a controller with a smaller profile when you need to fit in a tight space.
30-Day Warranty/Money Back Guarantee
ProXR Lite series controllers are guaranteed against manufacturing and functionality defects for a full 30 days! Not to mention a 30-day money back guarantee! If for any reason you are not happy with a relay purchased from Relay Pros, simply return it within 30 days and we will give you your money back! Controllers that are damaged by our customers will not of course be warranted under any circumstances.
The boards sold are brand new units shipped from our office conveniently located in Missouri. These boards are completely tested before they are released for shipping With so many boards on our site it is impossible to stock boards, please allow two to three days production time for your order to ship. If you have any questions please feel free to call our office at 800-960-4287 or e-mail us at firstname.lastname@example.org.
ProXR Lite Is Here!
A more streamlined manufacturing process brings a more durable, reliable and better relay board to the market. Here's a lists of great features:
User Friendly Board Design
Surface mount allows for a smaller more reliable board
Break-A-Way Tabs lets you decide the board's size
Screw terminal or direct relay connections makes connecting to the board easy
Highly reliable relay with industry leading command set
ProXR Lite Limitations
This controller cannot be expanded
Easy Software Development
Most of our customers write their own program for controlling these devices and use almost any language to do this. This boards supports the Serial Port Profile, meaning they will mount to the computer as a virtual com port making it very easy to send commands to the device. This board will support almost any programming language you are comfortable with.
Key Fob Configuration Kit
Configuration Kit (ZigMo) plugs into the UPS port on your PC and will mount as a COM port. The KFX Key Fob module will pull
off the board and can be installed in the ZigMo for configuration. Using Base Station Software (a free download) you will be able to
configure the commands that are transmitted for each key fob button press and release.
Power Supply Available
Reliable Power Means Reliable Switching
The PWR12 is regulated power supply providing clean power necessary for
the performance of these boards. The PWR12 US power supply is a 120VAC to 12VDC 1.25A 60Hz regulated
power supply and it plugs into the barrel connector on the board. The output connector is a 2.1mm I.D. x 5.5mm
O.D. x 9.5mm R/A barrel connector.
Additional Key Fobs
Key Fobs can be purchased individually or in money saving 5-packs or 10-packs. Look for them at checkout
an inductive load using our relay controllers requires the use of induction suppression capacitors. The purpose of this capacitor
is to absorb the high voltages generated by inductive loads, blocking them from the contacts of the relay. Without this capacitor,
the lifespan of the relay will be greatly reduced. Induction can be so severe that it electrically interferes with the microprocessor
logic of our controllers, causing relay banks to shut themselves down unexpectedly.
