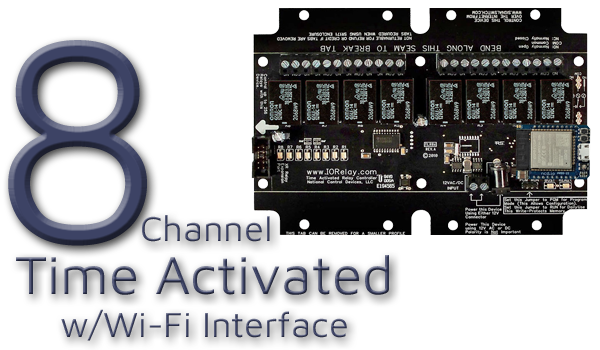

Time Relay - 8 Channel Wi-Fi

WiFi Time Clock Controller

Time Relay

Time Activated Wi-Fi Relay...

  • 8 Relays Installed on Circuit Board
  • Control Relays Based on Time Schedule
  • Reliable Sturdy Design
  • Embedded Wi-Fi over 802.11b/g
      - Supports Direct TCP/IP Communications
      - Supports DHCP
      - Supports Fixed IP Address
      - Password Protection
  • Supports Daylight Savings Time
  • Sync Time with PC or Manually Set Time
  • Base Station Software
     - Point & Click Interface
     - Use to Configure Time Schedule
     - Manually Trigger Relays
WiFi Time Control
Set Time Schedule to Trigger Relays

Our Time Relays are equipped with firmware built into the board that will allow you to setup a time schedule to trigger relays.  The Time Relay series has an integrated Real Time Clock to control relays based on a time schedule (the board knows what day & time it is).  These controllers can be associated with your wireless network and configured with your security protocols to setup the time schedule & upload it to the board. Once stored, the computer is no longer needed, and the relays will activate according to your schedule that can be as simple or as complex as your application requires.

Time Schedule Control
Events are scheduled times when a relay or group of relays are turned on or off.  They are defined by the user first by time: Year, Month, Day of Month, Day of week, Hour, Minute, and Second.  You have the ability of switching relays on or off at very specific times.  You can add up to 1000 Events to the list.

8-Channel Bluetooth Options
Wi-Fi Time Relays are available with SPDT (single pole single throw) 5, 10 and 20 amp or SPST (single pole single throw) 30-amp relays installed.

Time Relay - WiFi Time Clock Controller
These 8-Channel Time Activated Relays can trigger
relays according to a time schedule!
Time Activated Relay You Can Count On!

Selecting the Wi-Fi Interface

Wi-Fi ModuleBy selecting the Wi-Fi interface you will be sending the time schedule over a 802.11b/g wireless network from your computer.  Boards on this page are equipped with a WiFi communications module that adds 802.11b/g communications to the board.

Selecting a Wi-Fi Relay Board

Below you will find the 8-channel Time Relay controllers that are available.  The difference being the amperage of the relays installed and the type of relay.  Choose the controller that fits the amperage you are switching.  You will find SPDT relays in the 5, 10 and 20 amp versions and an SPST version in 30 amp.  For more information on selecting the correct relay for your application see Choosing a Proper Amperage>.

Easy Board Selection

Find the board you need by using the interactive menu to he right.  Hover over the Button and select the number of relays you want installed and then select the computer interface you need.  Once there simply select the board with the correct amperage for the item you are switching.
