Current Switched Fan Package

Use a Reactor or Key Fob Turn on a Relay or Light when it Detects Motion.


Motion Activated Light or Relay

Current Switched Fan Package

$283.00/ea

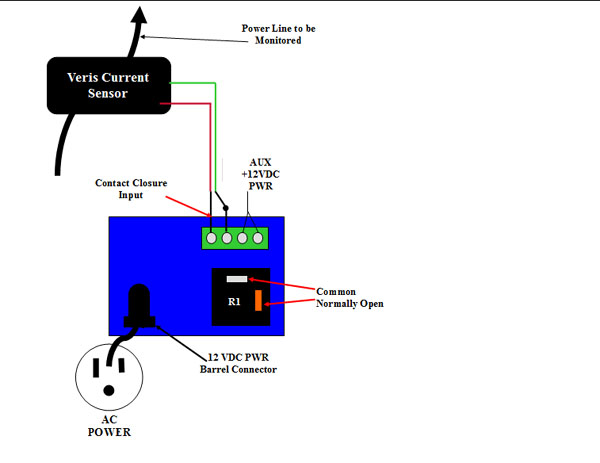

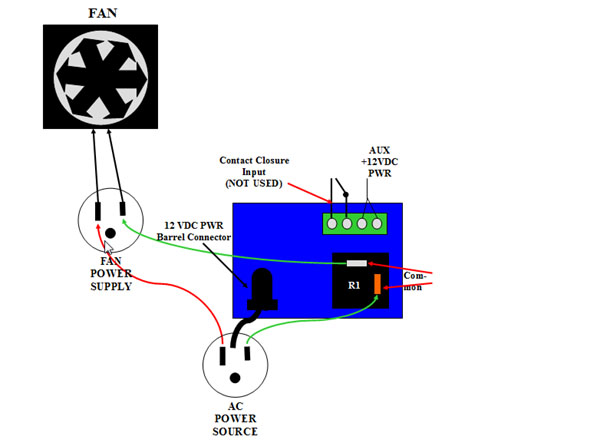

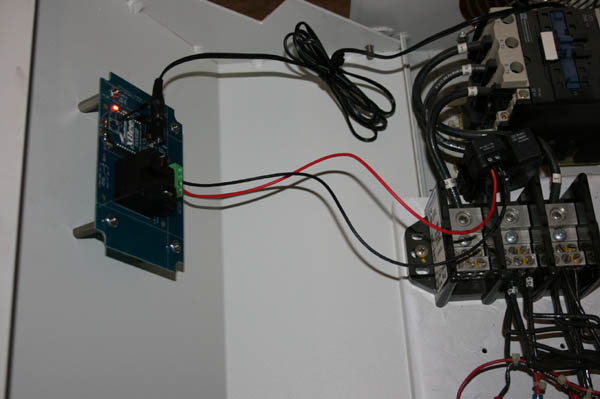

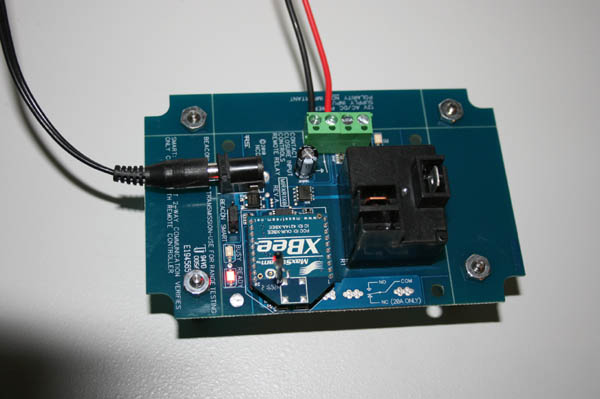

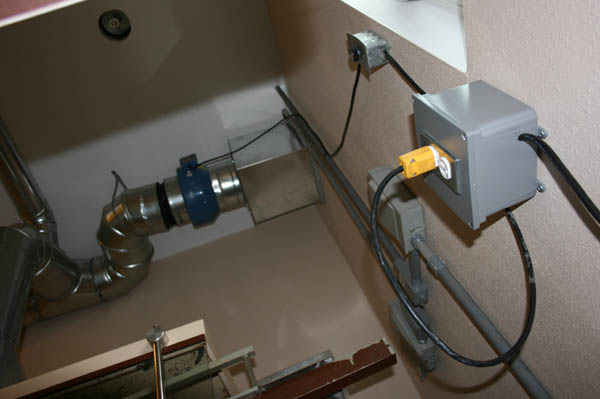

In this Application we will use a Pair of MirX controllers(all MirX controllers are sold in pairs) to turn on a duct fan when our reflow oven is turned on. We will use a current sensor to read when the oven is on. This contact closure will turn on a wireless relay. This would be considered a wireless contact closure. This setup requires absolutely no computer what so ever so it is as easy as wiring the controllers up. All components we offer for this application are available in the Package. Other parts used in this application were purchased at the local hardware store. The schematic and pictures below will show how the controllers are wired up. The video will explain the application in full. So if your ready lets get started.

Package Includes

  • List of equipment included in package:
  • MirXr130 Pair
  • Veris Current Sensor
  • Jumper Wire Pack
  • 2 Power Supplies
MirX Relay Controllers

This Product:

Fan_Controller
Reactor Relay
Current Switched Fan Package
Stock#: Fan_Controller
1-9 $283.00


Learn How to Use MirX Controllers.



This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.
