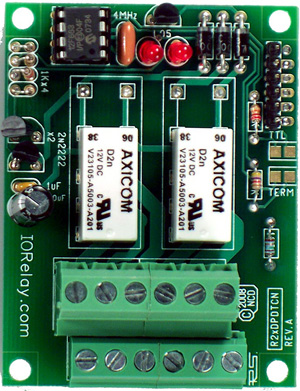

R21DPDTCN RS232 Relay

RS232 Relay 2-Channel 1-Amp DPDT
With Screw Terminal Connections

RS232 Relay Controller
Reliable Serial Communications will suit any control needs.
Compliance to ROHS Standards



Control this Device Over the Internet
SignalSwitch.com
Signal Switch Compatible

RS232 Relay 2-Channel 1-Amp DPDT
With Screw Terminal Connections

$80.00/ea



This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.



Watch to find out the advantages of wired communications and the differences between wired communications.
Also read our Articles on Communication Protocols.



This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.



Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.



This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.



This movie will explain the different expansion options that can be used with our controllers.

Features

  • 9600 Baud Operation
  • Relay Status LEDs
  • Convenient Terminal Blocks for easy electronic connections
  • E3C Compliant
  • Programmable E3C Device Number
  • High-Quality Sealed Relays
  • TTL RS-232 Inputs
  • +12 Volt Operation, 2-Wire RS-232
  • Overkill Transistor Drivers
  • No-Click Power-up
  • 2-Way Communication Capable
Serial Relay

This Product:

R21DPDTCN
Ratings AC DC
Voltage 120 12
Amperage 1 1
RS232 Relay 2-Channel 1-Amp DPDT
With Screw Terminal Connections
Stock#: R21DPDTCN
1-9 $80.00

Related Products:

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.
Ozarks Audio Visual
www.relaypros.com
800-960-4287

RS232 Controller

More Commands, On-Board Memory and E3C Compliance

A Basic RS232 Relay that's a Step Above the Compitition!

RS-232 Serial Relay Controller

Our RS-232 Relay Boards are fully E3C complaint, allowing up to 256 NCD devices to share a single RS-232 serial port.  Mix and match up to 256 devices in any combination.  Speak to each device individually or all devices at once.

To control the this Relay Controller,  simply connect a data and ground wire between the Relay Controller and computer or microcontroller. Provide +12 Volts DC to the board, and send ASCII character codes to control the relays.

Even a no-frills design deserves a high-quality driver stage, and that's exactly what we put on our Serial Relay Controllers.  Fast-reacting flyback diodes help shunt dangerous voltages away from the driver circuit.

Features include no-click startup, LED status lights, and E3C compliance.  Relays can be controlled at 9600 baud and the board is compatible with ANY computer or microcontroller capable of delivering RS-232 data.

Setup for the R25DPDTCN RS232 relay shown above using the optional QS12-F6 Quick Start Kit. Simply Connect the Serial Interface to your Relay Controller, connect the Power and Serial Cable and start sending commands.

Fully E3C Complaint RS232 Relay

Our RS-232 Relay Boards are fully E3C complaint, allowing up to 256 NCD devices to share a single RS-232 serial port. Mix and match up to 256 devices in any combination. Speak to each device individually or all devices at once.

To control the this Relay Controller, simply connect a data and ground wire between the Relay Controller and computer or microcontroller. Provide +12 Volts DC to the board, and send ASCII character codes to control the relays.

Even a no-frills design deserves a high-quality driver stage, and that's exactly what we put on our Serial Relay Controllers. Fast-reacting flyback diodes help shunt dangerous voltages away from the driver circuit.

Features include no-click startup, LED status lights, and E3C compliance. Relays can be controlled at 9600 baud and the board is compatible with ANY computer or microcontroller capable of delivering RS-232 data.

Quick Start Kits

Also available is our QS12-F6 Quick Start Kit. Kit includes a high quality regulated switcher supply, serial cables, and an RSIO adapter board used to add a standard serial and power connector to this relay controller.

Quick Start Kit: QS12-F6
Quick Start Kits provide everything you need to begin using your RS232 relay controller.  Kit includes a high quality regulated switcher supply, serial cable, and RSIO adapter (shown below).
QS12-F6 $49

RS232 Relay 2-Channel 1-Amp DPDT<br/>With Screw Terminal Connections

R21DPDTCN
$80.00
RS232 Relay 2-Channel 1-Amp DPDT<br/>With Screw Terminal Connections

2-Channel 1-Amp DPDT RS-232 Relay Controller with Relay Interface
Processing...

RS232 Relay 2-Channel 1-Amp DPDT<br/>With Screw Terminal Connections

R21DPDTCN
$80.00

This Item is Lead-Free RoHS Compliant <img border="0" src="http://www.controlanything.com/Merchant2/cart08a/rohs-Original.jpg">: RoHS Compliant
OPTIONAL: Quick Start Kit, Includes Serial Cable, Regulated +12 Volt Switcher Power Supply, and RSIO Serial Adapter Board with 6-Conductor Flex Ribbon Cable RoHS Compliant $49 <br/><img border="0" src="http://www.controlanything.com/Merchant2/cart08a/rohs-Original.jpg">: No Thanks! I don't need a Quick Start Kit US - 120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply RoHS Compliant  + $49.00 Intl - 100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply with 4 Adapters RoHS Compliant (+$12)  + $61.00
