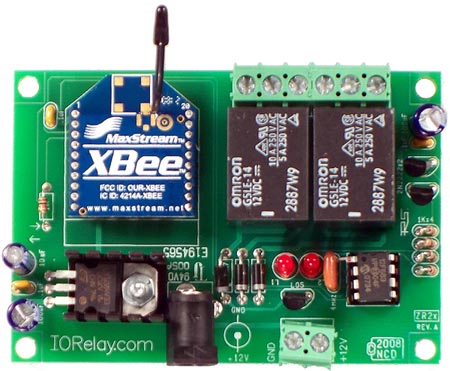

ZR210 IEEE 802.15.4 Relay
2-Channel 10-Amp SPDT 802.15.4 Wireless Relay Controller
NEW TO IEEE Wireless 802.15.4? GET STARTED HERE
Click the above link for an exclusive article on IEEE 802.15.4 communications
|NCD Base Station Software||Base Station identifies the controller that is attached to your computer and provides a convenient graphical user interface for controlling and testing your NCD Device.|
|Download USB Drivers||Download Latest USB Virtual COM Port Drivers (Used by the IEEE 802.15.4 Modem)|
|Configuration Utility||Download Latest X-CTU IEEE 802.15.4 Configuration Utility (Digi X-CTU Software lets you set advanced features of the Modem, not required for most applications)|
|Download Manual||Download ProXR Manual to learn about Relay Control Command Set|
|Download VB Samples||Download Visual Basic 6 Example Source Code|
Software Development Tools:
|NCD Component Library||The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics.|
- Wireless USB Interface Mounts as a Virtual COM Port on your PC for Easy Programming and 100% Compatibility Across ALL Operating Systems
- Low-Cost IEEE 802.15.4 Relay Configuration
- Plug In, Open the Virtual COM Port and Start Sending Commands
- Relay Status LEDs
- Convenient Terminal Blocks for easy electronic connections
- Overkill Transistor Drivers
- No-Click Power-up
- 2-Way Communication Capable
Wireless 802.15.4 Relay Controller
For Users with low Current, Low Signal Switching Applications
Our Wireless 802.15.4 Boards Provide Reliable, Low-Cost Solution
to your Wireless Relay Needs.
It works like this. Plug our IEEE 802.15.4 modem into the USB Port of your computer. The modem will mount as a COM port on your PC. Open the COM port and start sending data to the modem. The modem will forward your data to all IEEE 802.15.4 compliant devices within range (it is also possible to speak to a specific device when other controllers are in range).
This series of relay controllers are among the smallest, most versatile Wireless Relay Controllers we offer. In fact, we believe this series to be the smallest serial relay controller on the market with the highest current switching capabilities.
Even a no-frills design deserves a high-quality driver stage, and that's exactly what we put on this Relay Controller. Fast-reacting flyback diodes help shunt dangerous voltages away from the driver circuit.
The IEEE 802.15.4 Interface allows for highly reliable Wireless Relay Control.
