Download NCD Component Library
By downloading the NCD Component Library you will receive all the program samples found on this page and best of all it's FREE!! We want the user to be able to experiment with all the different samples available so as of right now the samples cannot be downloaded individually. And best of all it's a free download! Download NowPlug-In For Visual Studio
The NCD Component Library is a plug-in for the Visual Studio 2005/2008 that greatly simplifies the communications to the NCD product line. The samples can be run in Visual Studio and fully customizable to your needs.
Visual Basic Library at a Glance
- Simplifies the communications to the NCD product line
- Samples available for specific applications
- A/D Conversion
- Motion Detection
- Keypad Data
- Potentiometer Values
- Storage Features
- Duration and Pulse Timing
- ProXR Timer Calibration and Testing
- Setting/Reading the Status of up to 256 Relays - Samples available for specific relays
- Up to 8 Channel Relays
- 16 Channel Relays
- ProXR Relays
- SCAN Series Controllers
- 802.15.4 Wireless Relays
- ZB ZigBee Relays - Source code Included - Fully Customizable
- All samples are FREE
ProXR & ProXR Lite Samples
Below are ProXR and ProXR Lite samples included in the Component Library.Download Component Library Over 40 samples included with this download! Start by downloading the NCDComponentSetup.zip file and you will be communicating with any NCD device faster that ever! Download Now

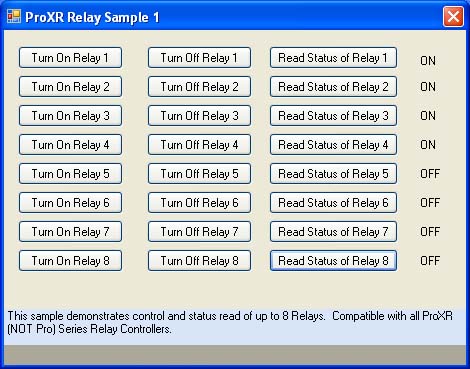

ProXR Sample 1
Up to 8 Channel ProXR
(click above picture to enlarge)
This sample demonstrates control and status read of up to 8 Relays. Compatible with all ProXR & ProXR Lite boards.

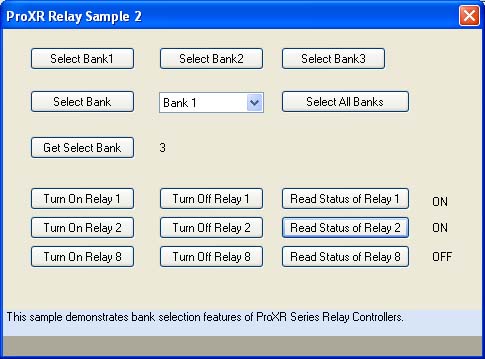

ProXR Sample 2
ProXR Bank Selection Features
(click above picture to enlarge)
This sample demonstrates bank selection features of ProXR Series Boards

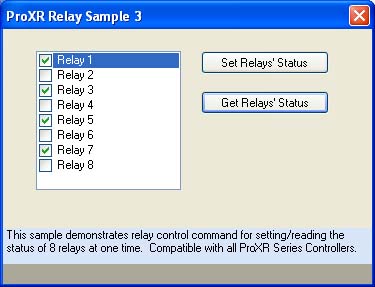

ProXR Sample 3
Setting/Reading the Status of 8 Relays
(click above picture to enlarge)
This sample demonstrates relay control command for setting/reading the status of 8 relays at one time. Compatible with all ProXR boards
ProXR Sample 4
Setting/Reading the Status of up to 256 Relays
(click above picture to enlarge)

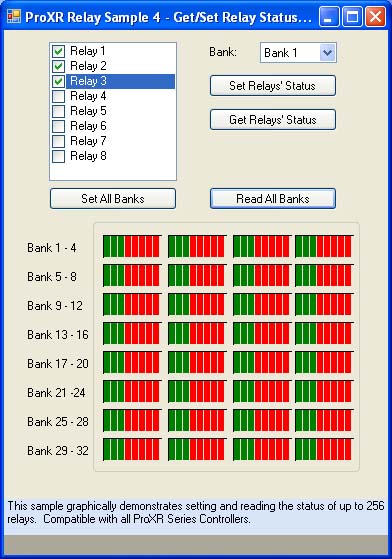

This sample graphically demonstrates setting and reading the status of up to 256 relays. Compatible with all ProXR Series Boards

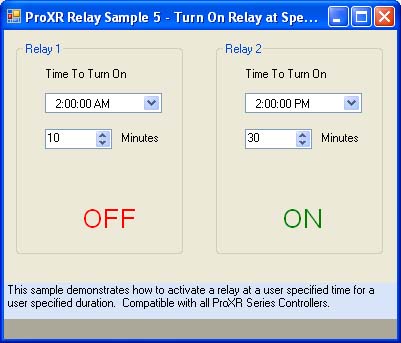

ProXRRelaySample5.exe
Activate with Specified Time/Duration
(click above picture to enlarge)
This sample demonstrates how to activate a relay at a user specified time for a user specified duration. Compatible with all ProXR Series Boards

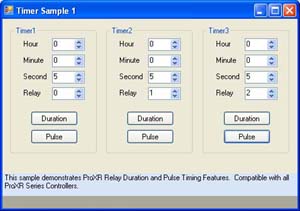

Timer Sample 1
Relay Duration and Pulse Timing
(click above picture to enlarge)
This sample demonstrates ProXR Duration and Pulse Timing Features. Compatible with all ProXR Series Controllers

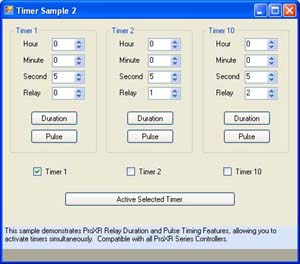

Timer Sample 2
Activate Timers Simultaneously
(click above picture to enlarge)
This sample demonstrates ProXR Duration and Pulse Timing Features, allowing you to activate timers simultaneously. Compatible with all ProXR Series Controllers

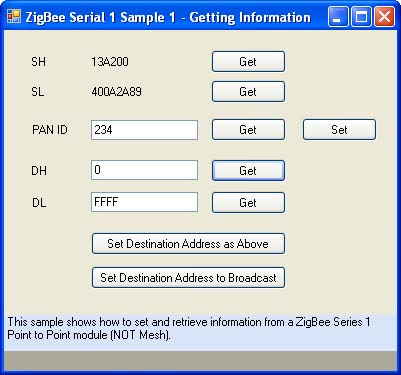

802.15.4 Sample 1
Set & Retrieve Info From 802.15.4 Module
(click above picture to enlarge)
This sample shows how to set and retrieve information from a 802.15.4 Wireless Series 1 Point to Point module (NOT Mesh)

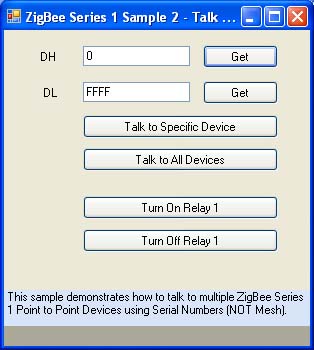

802.15.4 Sample 2
Talk to Multiple 802.15.4 Boards
(click above picture to enlarge)
This sample demonstrates how to talk to multiple 802.15.4 Wireless Series 1 Point to Point Devices using Serial Numbers (NOT Mesh)

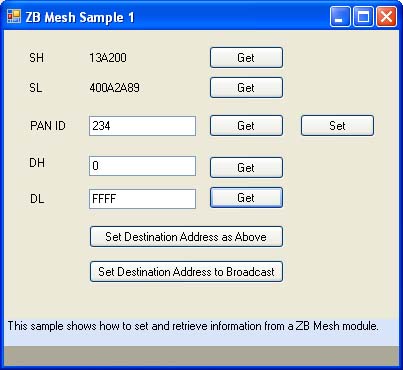

Mesh Network Sample 1
Set & Retrieve Info From ZB Mesh Module
(click above picture to enlarge)
This sample shows how to set and retrieve information from a ZB ZigBee module
Mesh Network Sample 2
Retrieve List of ZB Mesh Devices
(click above picture to enlarge)
This sample shows how to retrieve a list of ZB ZigBee Devices (displays all serial numbers associated with ZB ZigBee Mesh Network)
Mesh Network Sample 3
Talk to Multiple ZB ZigBee Devices
(click above picture to enlarge)
This sample demonstrates how to talk to multiple ZB ZigBee Devices using Serial Numbers
Analog to Digital Conversion Samples
Below are Analog to Digital Conversion samples included in the Component Library. The samples below are compatible with any ProXR Lite board or any ProXR board with the A/D Inputs (part numbers beginning with ZAD).Download Component Library Over 40 samples included with this download! Start by downloading the NCDComponentSetup.zip file and you will be communicating with any NCD device faster that ever! Download Now
AD Sample 1
Analog to Digital Converter Sample 1
(click above picture to enlarge)

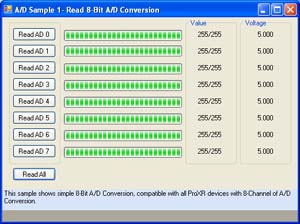

This sample shows simple 8-Bit A/D Conversion, compatible with all ProXR devices with 8-Channels of A/D Conversion

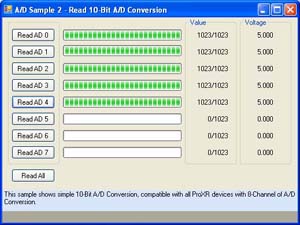

AD Sample 2
Analog to Digital Converter Sample 2
(click above picture to enlarge)
This sample shows simple 10-Bit A/D Conversion, compatible with all ProXR devices with 8-Channels of A/D Conversion
AD Sample 3
Analog to Digital Converter Sample 3
(click above picture to enlarge)
This sample shows 16-Channel 8-Bit A/D Conversion, compatible with all ProXR devices with AD1216 Feature Set, Including UXP Series Controllers.
AD Sample 4
Analog to Digital Converter Sample 4
(click above picture to enlarge)
This sample shows 16-Channel 12-Bit A/D Conversion, compatible with all ProXR devices with AD1216 Feature Set, Including UXP Series Controllers

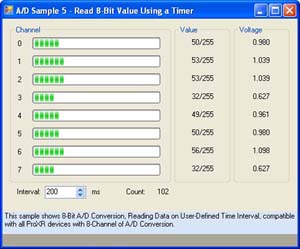

AD Sample 5
Analog to Digital Converter Sample 5
(click above picture to enlarge)
This sample shows 8-Bit A/D Conversion, Reading Data on User-Defined Time Interval, compatible with all ProXR devices with 8-Channels of A/D Conversion

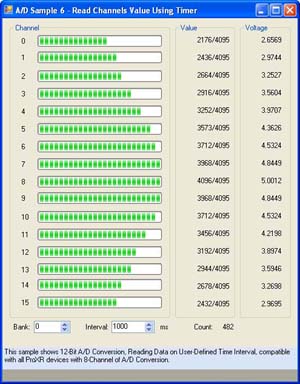

AD Sample 6
Analog to Digital Converter Sample 6
(click above picture to enlarge)
This sample shows 12-Bit A/D Conversion, Reading Data on User-Defined Time Interval, compatible with all ProXR devices with 8-Channels of A/D Conversion
AD Sample 7
Analog to Digital Converter Sample 7
(click above picture to enlarge)
This sample shows 16-Channel 12-Bit A/D Conversion, Reading Data on User-Defined Time Interval, compatible with all ProXR devices with AD1216 Feature Set, Including UXP Series Controllers
AD Sample 8
Analog to Digital Converter Sample 8
(click above picture to enlarge)
This sample reads 10-Bit Celsius Temperature using MCP9701A Temperature Sensor Directly Interfaced to AD Input. Compatible with all ProXR devices with 8-Channels of A/D Conversion
Potentiometer Samples
Below are samples included in Component Library for Potentiometer Boards. The Component Library is a plug-in for the Visual Studio 2005/2008 that greatly simplifies the communications to the NCD product line. The samples can be run in Visual Studio and fully customizable to your needs.Download Component Library Over 40 samples included with this download! Start by downloading the NCDComponentSetup.zip file and you will be communicating with any NCD device faster that ever! Download Now
Potentiometer Sample 1
Control of 8 Digital Potentiometers
(click above picture to enlarge)
This sample demonstrates simple control of 8 digital potentiometers. Compatible with all ProXR POT Series Controllers
Potentiometer Sample 2
Analog to Digital Converter Sample 2
(click above picture to enlarge)
This sample demonstrates storing and reading stored potentiometer values. Compatible with all ProXR POT Series Controllers
Pro Series Samples
Below are samples included in Component Library for the Pro Series RS-232 boards. These samples are NOT compatible with the ProXR or ProXR Lite Samples.Download Component Library Over 40 samples included with this download! Start by downloading the NCDComponentSetup.zip file and you will be communicating with any NCD device faster that ever! Download Now

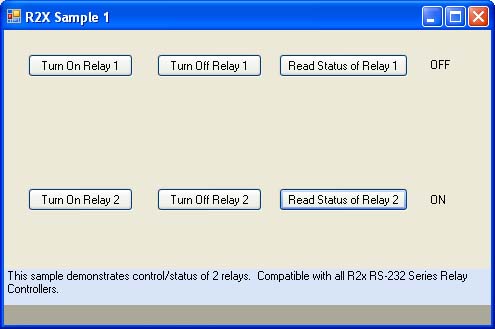

2-Channel Sample 1
Analog to Digital Converter Sample 1
(click above picture to enlarge)
This sample demonstrates control/status of 2 relays. Compatible with all 2-Channel Pro (NOT ProXR) Series Boards

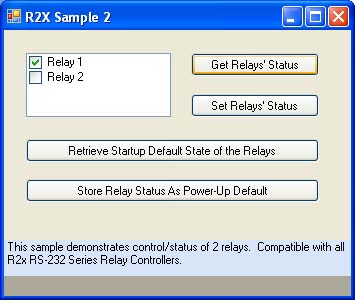

2-Channel Sample 2
Analog to Digital Converter Sample 2
(click above picture to enlarge)
This sample demonstrates control/status of 2 relays and demonstrates data storage features. Compatible with all 2-Channel Pro (NOT ProXR) Series Boards

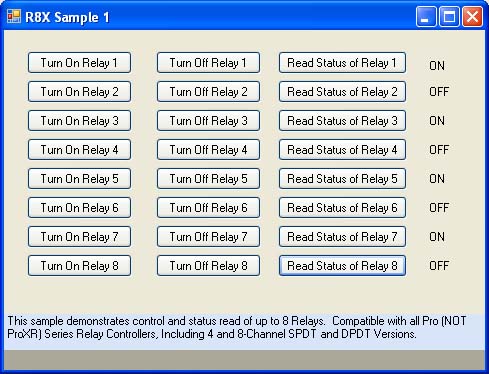

8-Channel Sample 1
Analog to Digital Converter Sample 3
(click above picture to enlarge)
This sample demonstrates control and status read of up to 8 Relays. Compatible with all Pro (NOT ProXR) Series boards, including 4 and 8-Channel SPDT and DPDT Versions

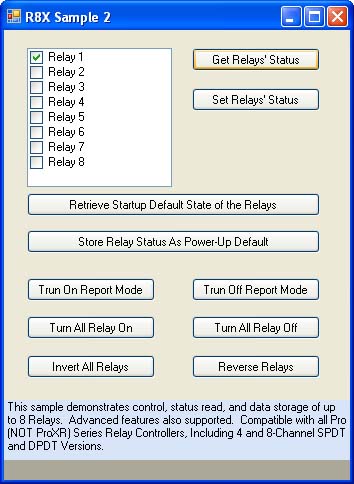

8-Channel Sample 2
Analog to Digital Converter Sample 4
(click above picture to enlarge)
This sample demonstrates control, status read, and data storage of up to 8 Relays. Advanced features also supported. Compatible with all Pro (NOT ProXR) Series boards, including 4 and 8-Channel SPDT and DPDT versions
8-Channel Sample 3
Analog to Digital Converter Sample 5
(click above picture to enlarge)
This sample demonstrates advanced control of up to 8 Relays. Sample demonstrates storage features. Compatible with all Pro (NOT ProXR) Series boards, including 4 and 8-Channel SPDT and DPDT versions
8-Channel Sample 4
Analog to Digital Converter Sample 6
(click above picture to enlarge)
This sample demonstrates simple timing features of Pro (NOT ProXR) Series boards, including 4 and 8-Channel SPDT and DPDT versions
