Expansion Boards at a Glance...

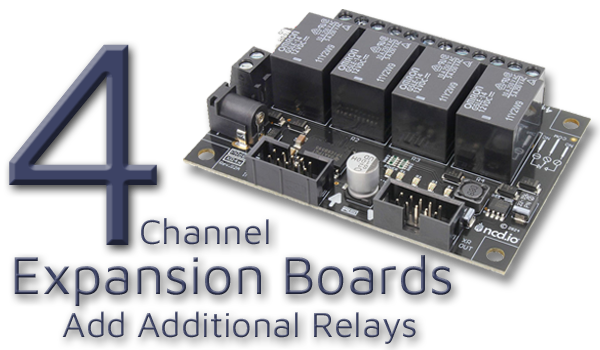

  • 4 Relays Installed on a Circuit Board
      - Highly reliable under almost any conditions
      - Includes 6" XR Expansion Cable
  • Add Relays to
      - ProXR Boards
      - Time Activated Taralist Boards
  • Access Relays Just Like They are Installed on the Main Board
  • Expansion Boards DO NOT Operate on Their Own
      - MUST be used with a ProXR or Taralist Board
  • Add up to 256 Relays to any ProXR Controller
  • Different Types of XR Expansion Modules can be Chained Together

Selecting an Expansion Board

XR Expansion Boards are used to add banks of external relays to an NCD device.  XR Expansion Boards have no on-board brains, they are entirely reliant on the brains of a "master" device.  A master device is an NCD controller with an XR expansion port and a microprocessor of some kind.  When you need more relays for your application simply plug in an XR expansion board to add more.  you can add up to 256 relays!

Linking XR Expansion Boards Together

Plug in the expansion board using the included 6" ribbon cable to the main board.  You can also daisy chain expansion boards together up to a total of 256 relays.
