Time Activated Relay

Time Activated Relay at a Glance...

  • Integrated Real Time Clock
      - Board Knows Time & Day
      - Control Relays Based on Time Schedule
  • Time Schedule You Create
      - Upload Time Schedule to Board
      - Board Operates Without a Computer
      - Relays Trigger by Time Schedule
      - USB & Network Interfaces Available
  • Base Station Software
      - Point & Click Interface
      - Use to Configure Time Schedule

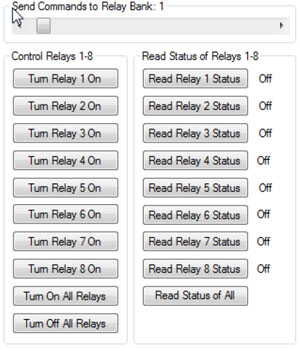

      - Manually Trigger Relays
      - Free Download!

Time Activated Relay

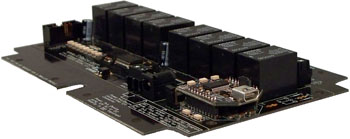

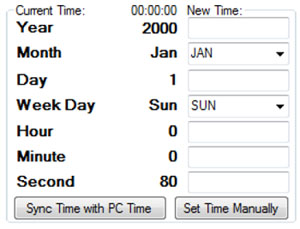

Our Time Activated Relays are equipped with firmware built into the board that will allow you to setup a time schedule to trigger relays.  The Time Activated Relay series has an integrated Real Time Clock to control relays based on a time schedule (the board knows what day & time it is).  Connect these controllers to the serial port of your computer to setup the time schedule & upload it to the board. Once stored, the computer is no longer needs, and the relays will activate according to your schedule that can be as simple or as complex as your application requires.

Time Schedule Control

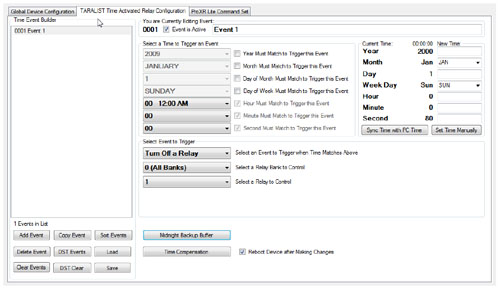

Events are scheduled times when a relay or group of relays are turned on or off.  They are defined by the user first by time: Year, Month, Day of Month, Day of week, Hour, Minute, and Second.  You have the ability of switching relays on or off at very specific times.  You can add up to 1000 Events to the list.

Selecting a Time Activated Relay

How many relays do you need?  Below you will find all the Time Activated Relays that are available.  Each section is broken down by the number of relays installed on the board.  Choose how many relays you require and click that link.  This will bring you to a page where you will select a communication interface.  Time Activated Relays are available with up to 64 relays onboard but they can be expanded up to 256 total relays.
