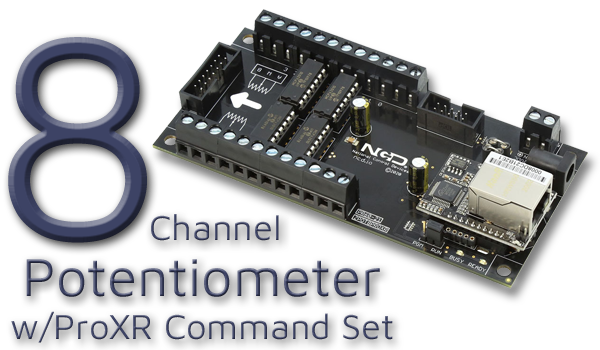

Potentiometers at a Glance...

  • Programmable Potentiometers
      - 256 Levels of Programmable Resistance
      - Operates in the 0 - 5 Volt Range
      - Maximum Current Capacity of 1ma
      - 3 Contact Points for Each
      - Available in 10K, 50K and 100K Resistance
      - Temperature Rating -40° C to 85° C
      - Expandable to 256 Potentiometers
  • Onboard Interface Module
      - USB Option

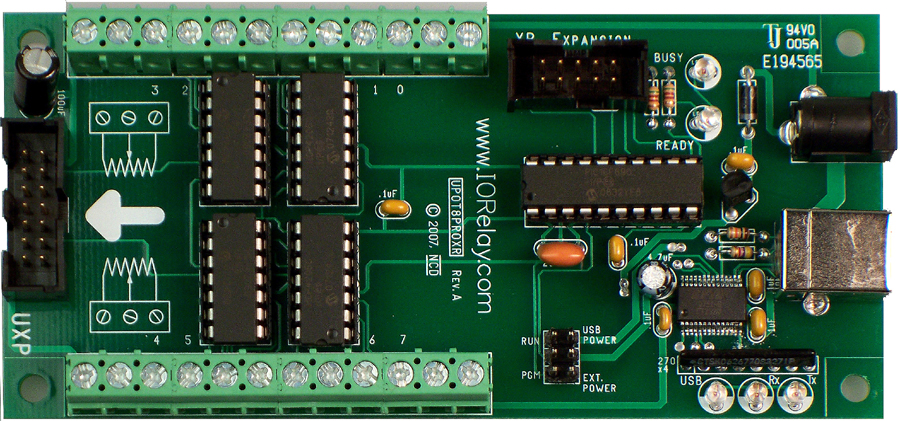

Programmable Digital Potentiometer

A USB Potentiometer has the capability of sending a command to the board to control the resistance output of a specific potentiometer.  Each potentiometer has 3 Connections: A, Wiper, and B.  When a low value is sent to the controller, the wiper moves closer to A, decreasing the resistance between A and the wiper (increasing the resistance between the wiper and B).  When a high value is sent to the controller, the wiper moves closer to B, decreasing the resistance between the wiper and B (increasing the resistance between the wiper and A).  It is possible to set the wipers on all outputs individually or simultaneously.

2020 Release Date

A new line of upgraded line of USB Potentiometers will be introducted in April of 2020!
