Time Relay

Time Relay at a Glance...

  • Integrated Real Time Clock
      - Board Knows Time & Day
      - Control Relays Based on Time Schedule
      - Schedule up to 1000 Events!
  • Time Schedule You Create
      - Upload Time Schedule to Board
      - Board Operates Without a Computer
      - Relays Trigger by Time Schedule
      - USB & Network Interfaces Available
  • Base Station Software
      - Point & Click Interface
      - Use to Configure Time Schedule
      - Manually Trigger Relays
      - Free Download!

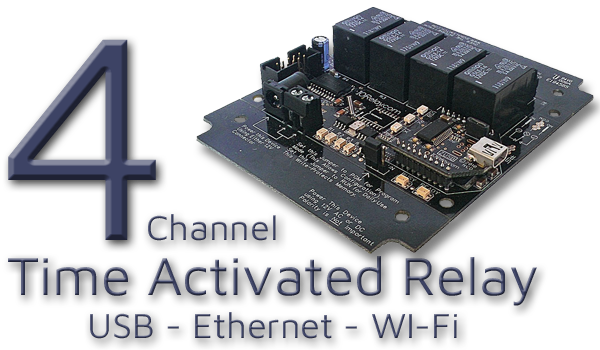

Time Activated Relay

Our Time Relays are equipped with firmware built into the board that will allow you to setup a time schedule to control relays.  The Time Relay series has an integrated Real Time Clock to control relays based on a time schedule (the board knows what day & time it is).  Connect these controllers to the serial port of your computer to setup the time schedule & upload it to the board. Once stored, the computer is no longer needs, and the relays will activate according to your schedule that can be as simple or as complex as your application requires.

Time Schedule Relay Control

Events are scheduled times when a relay or group of relays are turned on or off.  They are defined by the user first by time: Year, Month, Day of Month, Day of week, Hour, Minute, and Second.  You have the ability of switching relays on or off at very specific times.  You can add up to 1000 Events to the list.

Selecting an Interface

How would you like to configure the board?  Below you will find all the 4-Channel Time Activated interfaces that are available.  Each section is broken down by the interface installed on the board.  The interface will determine how you will communicate to the board with your computer.  You will configure your time schedule to the board using the free Base Station Software, once configure the computer is no longer needed!  Choose the interface you require and click that link.  This will bring you to a page where you will select a board based on amperage of the relay installed.
