Time Activated Relay 2-Channel 30-Amp USB Interface

USB Configuration

The time schedule must be configured using a computer and Base Station Software (a free download).  Once configured, the board will operate without a computer.  By choosing a USB version you will connect your computer to the board via a USB cable.  This is the easiest and most popular way to connect to the Taralist Board.  At any time, a computer may monitor the Taralist board, Trigger Events, Activate Relays, or Change schedules.  A computer can take over a Taralist or a Taralist can operate autonomously (without a computer).

Mounts as a COM Port

This Time Activated Relay connects to the USB port of your computer and will mount as a COM port on your PC.  USB Drivers may be needed and links can be found in the USB Quick Start Guide.  Windows 7, 8 & 10 users will automatically download and install the necessary drivers.

ZUSB Modules

This board is equipped with a ZUSB Module.  The ZUSB communications module adds USB communications to the board.  The ZUSB module is powered from the USB port of your computer and includes a 6' USB Cable.  The board itself will require 12 volts of power and can be hard wired or you can purchase a "wall wart" type transformer at checkout.

Take Manual Control of Taralist

At any time, a computer may monitor the Taralist Controller to read the status of the relays, activate relays, or change configuration settings using Base Station Software.  This USB version will allow access to the board as long as it is still connected to the USB port of your computer.  A computer can take over the Taralist or the Taralist can operate autonomously (without a computer).  The Taralist Configuration Utility is part of Base Station software and this is a free download.

Once Configured

Once the Taralist is configured, it will run through the list of events stored in its on board memory every second to look for a match with the current time.  If a match with the current time and a configured event is discovered, it will execute the event.

Controlling Relays

There are 2 possible ways to control the relays on a Taralist Series controller.

• A Relay can be Directly Controlled by a time schedule.
• This Relay can be controlled from a computer through a USB connection.  A computer can take control of any or all relays on a Taralist controller at any time.  Once taken over, the Taralist logic will not be able to switch a relay.  The computer MUST return control of the relay back to the Taralist Logic for standalone operation.

Who's Qualified to Use the Taralist Series?

Some computer skills required.  The Taralist Relays do not require programming, simply configure the device with the included Base Station Software.  While programming is not required and simple functions can be done rather easily with basic computer skills, complex events can be configured which will require some understanding and patience.

Induction Capacitors

Perhaps the most overlooked aspect of relay control is proper handling of inductive loads. Inductive loads can best be defined as anything with a magnetic coil, such as a motor, solenoid, or a transformer.  Controlling a inductive load using this relay controller requires the use of induction suppression capacitors.  The purpose of this capacitor is to absorb the high voltages generated by inductive loads, blocking them from the contacts of the relay.  Without this capacitor, the lifespan of the relay will be greatly reduced.  Induction can be so severe that it electrically interferes with the microprocessor logic of our controllers, causing relay banks to shut themselves down unexpectedly.  In the case of USB devices, customers may experience loss of communications until the device is reconnected to the USB port.  Capacitors that we offer are available at checkout, for more information view our Induction Suppression Video.

Base Station Software

Base Station Software is used to configure and upload the time schedules to the Time Activared Board.

Integrated Real Time Clock

The Taralist series have an integrated battery backed Real Time Clock with memory that allows users to control relays based on a time schedule.  Use your computer to setup the time schedule and store your schedule into the board.  Once stored, the Taralist does not require a computer, and will control the relay according to a schedule that can be as simple or as complex as your application requires.

Time Schedule Events

Events are scheduled times when a relay or group of relays are turned on or off.  They are defined by the user first by time: Year, Month, Day of Month, Day of week, Hour, Minute, and Second. You have the ability of switching relays on or off at very specific times!  Activate relays only when the day is Monday, activate relays when the day is Monday and the Year is 2020, activate relays when the day is Monday, the year is 2020 at 9:44:21 AM.  They are also defined by how they control the relays, whether they turn a relay or group of relays on or off. You can add up to 1000 Events to the list.

Program Multiple Schedules

Override functions are also supported.  So if the normal schedule activates a light during weekdays, but you don't want the light to come on during holidays, simply program your holiday schedule to prevent the light from activating according to your normal schedule.

Daylight Savings Time is also supported, and is FULLY CUSTOMIZEABLE.  As we all know, DST laws change periodically, but the Taralist series allow you to change the year and date of all DST events (we have programmed the US dates until 2030).

Save You Schedules

Taralist controllers allow you to build and save your time schedule as a file on your computer.  Different schedules can be configured for different times of the year, for instance one for Summer School and one for the full school year.  Upload the schedule you need for that part of the year.  For users with multiple boards saved schedules can also be used to store the time schedule into each controller easily without re configuring.

Defining Time

Using Base Station you can set the time manually or you can sync the time with your PC.  The user can do this by simply clicking the Sync Time with PC Time button or by filling in the Year, Month, Day, Week Day, Hour, Minute, Second parameters and then clicking the Set Time Manually button.

Clock Accuracy - Adjustable Time Compensation

Like most clocks, time drift is a reality and the Taralist controller will drift over time.  The Taralist clock has some special features to help keep the time accurate.  Time compensation functions are included that allow you to automatically adjust the clock forward or back (by up to 15 seconds) each day of the week.  For instance, you may find the Taralist keeps better time if it automatically advances the clock 1 second each day of the week.  Or you may find that you need to subtract 5 seconds from the clock 1 day per week.  Adjustable time compensation will help keep your clock accurate (though it is always a good idea to check on the clock periodically).

If your application requires your relay control to match a computer's time exactly we recommend using a computer controlled Relay and Relay Timer Software.  The software can be installed on a computer or server and match the time exactly.  We recommend this for school bells and shift change applications where matching a time clock is vital.  Select a Wired or Wireless Relay under Relay Control from the top menu to select a board then add the Relay Timer Software at checkout.

Computer Control

The Time Relay series controllers have some amazing abilities when it comes to making decisions on their own based on the events you configure into them, but you can take control of the relays at any time from a computer as long as communications are established between your computer and the Time Relay device.

The interface elements shown at right allow a computer to take over control of any relay and force the relays to a On or Off state.  You may also turn all relays on or off using the all relays on and all relays off buttons.  You can also read the status of relays by clicking the Read Relay 1-8 Status.  The Status of the relay will be shown to the right of the button.  The slider at the top of the screen allows you to select with bank of relays these commands are directed to.  You may attach up to 32 banks or 256 Relays.

Power Loss Backup Buffer

The Midnight Backup Buffer is a special feature developed to help keep track of which relays should be activated in the event power is lost.  Every night at midnight, the current status of all relays is stored in non-volatile memory.  If power is lost, the Taralist will load the status of the relays from memory.  Next, the Taralist will calculate all events from midnight to the current time to determine if any relays need to be activated or deactivated.  Finally, the Taralist will refresh all relays and will be ready for normal operation.

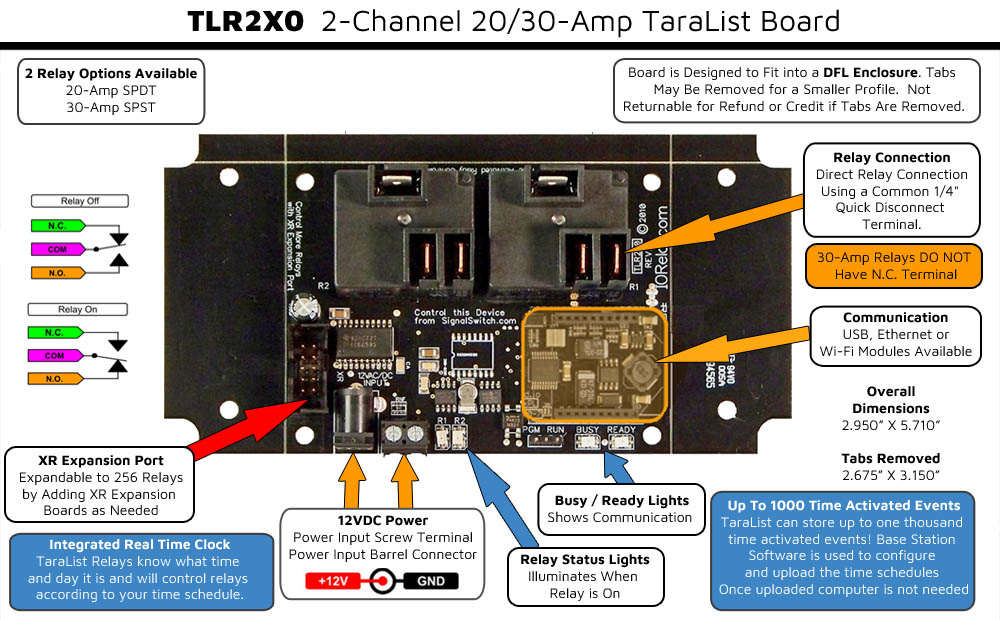

Time Activated Relay

We've looked at the interface and the configuration now let's take a look at the board design itself.  The Taralist series controllers are machine manufactured for a highly accurate and reliable design.  Fully tested before they leave the production facility each Taralist controller is ready to stand up to rigorous demands from heat, cold or vibration.  The best test of all is the numerous boards in the field from customers all over the world in all sorts of conditions.  Take it from us, these controllers will hold up!

SPST Relay Installed

This device has SPST relays installed.  SPST Single Pole Single Throw Relays simply connect two wires together.  The Common (COM) is the  moving part of the relay that comes in contact with the Normally Open (NO) when the coil to the relay is energized.  Wiring is done directly to the Relay terminals using a common 1/4" quick disconnect terminal.  To the right is a picture of the connector that can be purchased to connect to the relay.

Powering the Board

Reliable power means reliable switching!  Applying Good clean power to the board is essential for the operation of the board and the firmware that processes the commands.  For sizing a power supplly 12V regulated is required, 13.8V (automotive) is tolerated well by the board but a 12V regulated supply is what the board is designed for.  We do not recommend running below 9V or above 14V.  Average wall wart supplies are not suitable since they can fluctuate excessively, use batteries or consider purchasing a regulated supply to achieve the 12V spec as closely as possible.  For more on powering the board Click Here

Aproximate Power Usage

• 100ma for logic of of the board to process commands
• 250ma for WiFi & wireless communications
• 80ma for each relay that is activated

Break-A-Way Tabs for a Smaller Design

The Taralist relays have a great feature where space is a premium - Break-A-Way Tabs.  The Break-A-Way Tabs allow most boards to fit in an optional undrilled plastic enclosure.  Snap off the Break-A-Way Tabs and you have a controller with a smaller profile when you need to fit in a tight space.

Add Relays as Your Needs Grow

Time Activated Relays are expandable up to 256 total relays.  The controller is fitted with an XR Expansion Port where you can add expansion boards to this relay.  The Expansion Boards get their logic from the main board and will require 12 VDC regulated power.  Expansion boards do not need to be the same relay amperage as the main board or other expansion boards.

2-Million Cycles

ProXR series controllers are designed for long life, you should expect to get years of service from your controller and literally 2-million cycles from the relays on board.  With a 5-year warranty and a money back guarantee you have nothing to loose!  Place your order now, while everything is in front of you.

RoHS Compliant

This board is led free and RoHS Compliant.  If your requirements are for RoHS compliant parts this board is manufactured with RoHS compliant led free parts and solder.

30-Day Warranty/Money Back Guarantee

Taralist series controllers are guaranteed against manufacturing and functionality defects for a full 30 days!  Not to mention a 30-day money back guarantee!  If for any reason you are not happy with a relay purchased from Relay Pros, simply return it within 30 days and we will give you your money back!  Controllers that are damaged by our customers or have the Break-A-Way tabs removed will not of course be warranted under any circumstances.

Shipping & Lead Time

The boards sold are brand new units shipped from our office conveniently located in Missouri.  These boards are completely tested before they are released for shipping  With so many boards on our site it is impossible to stock boards, please allow two to three days production time for your order to ship.  If you have any questions please feel free to call our office at 800-960-4287 or e-mail us at sales@relaypros.com.

Time Activated Relay Is Here!

Control relays with a time schedule with and configure with Base Station software a free download.  Here's a lists of great features:

User Friendly Software
• Point & Click Interface - No Programming Knowledge Required
• Override Time Schedule When Computer is Connected to Board
• Read Status of Relays in Base Station

User Friendly Board Design
• Break-A-Way Tabs lets you decide the board's size
• Direct relay connections make connecting easy

Data Sheets & Quick Start Guides

Below are the Data Sheets Quick Start Guides for this board.  These are the guides that will help you communicate and configure this board.
