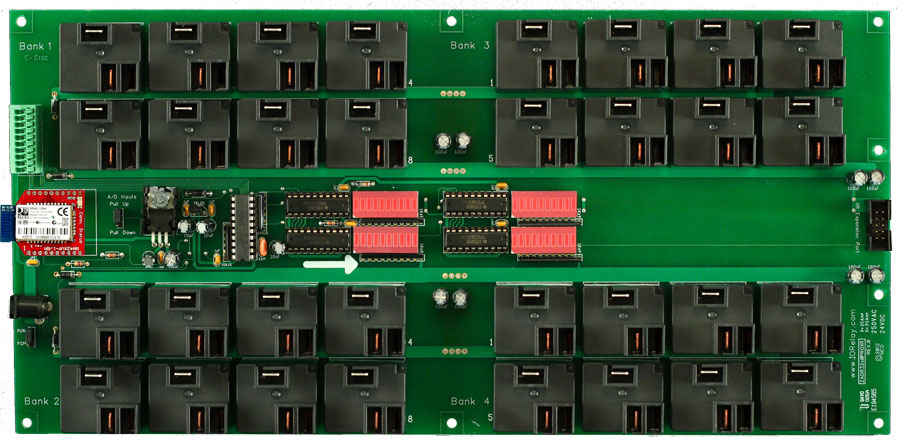

Bluetooth Relay 32-Channel 30-Amp ProXR

Bluetooth Relay

Bluetooth is an ideal wireless platform relay control within a short range.  Bluetooth Relays will be paired with your computer, smart phone or tablet using the Bluetooth connection on your device.  This involves traditional pairing methods you are already familiar with.  Once paired, the ZADR3230PROXR_ZBT will appear in your Bluetooth control panel, and a new COM port will be available for computer users.  Once the connection has been established Android users can download the free app from Google Play and start controlling the relay installed.

ZBT Modules

This board is equipped with a ZBT Module.  The ZBT communications module adds Bluetooth communications to the board.  There are two module options available, for more on each module see Bluetooth Module Options  The ZBT module is powered from the board.  The board itself will require 12 volts of power and can be hard wired or you can purchase a "wall wart" type power supply.

Bluetooth Configuration

Configuration is easy with the optional Bluetooth ZigMo Modem.  Simply connect it to the USB port of your computer with the supplied cable.  The Bluetooth ZigMo is available as an option when you purchase your Bluetooth controller.  The ZBT module will pull off the board and can be installed in the ZigMo for configuration.  You can then configure the baud rate and password settings if you require a secure wireless control.  After configuration the ZBT module can be re-installed in your board and it's ready to pair with your device.

Sending Commands

For computer users Base Station Software is available at no charge to get you up and running fast (more on Base Station below).  Once powered up, the controller waits for a command.  A command consists of a few bytes of data in numerical format (ProXR Enhanced Command Set) usually between 2 and 6 bytes.  Once the command has been received, the controller processes the command, and sends you back ASCII character code 85 to signal the completion of your command.  If a command was sent to read the status of the relay the status is sent back.

Bluetooth on Apple Computers

Communicating to to this board on a Mac is possible, although it can be a bit tricky.  The Bluetooth Mac Terminal video below shows the steps to establish Bluetooth communication and controlling the relay on a Mac.

Bluetooth on iPhone or iPad

Unfortunately the iPhone and iPad are a different matter.  Apple encrypts the Bluetooth signal on an iPhone and iPad and therefore this board will not communicate with the iPhone or iPad.  We recommend the Web-i browser based interface for the iPhone or iPad users.

The ProXR SPST Relay Board

ProXR Relay

We've looked at the interface now let's take a look at the board design and programming.  The ProXR series controllers are manufactured by hand for a highly accurate and reliable design.  Equipped with the XR Expansion Port additional relays can be easily added.  Fully tested before they leave the production facility each ProXR controller is ready to stand up to rigorous demands from heat, cold or vibration.  The best test of all is the numerous boards in the field from customers all over the world in all sorts of conditions.  Take it from us, these controllers will hold up!

Easy Software Development

Most of our customers write their own program for controlling these devices.  Since you can use almost any programming language, you can use one that is most familiar to you so you don't have to learn a new language.  These boards support the Serial Port Profile, meaning they will mount to the computer as a virtual com port. This makes it very easy to send commands to the board.  Not a programmer, check out N-Button!  Software that allows you to configure buttons to control relays and read the status of those relays without programming using point-and-click action.  Click Here for More

Base Station Software

Base Station Software was designed to help you learn the ProXR command set.  Explore ProXR features using it's Graphical User Interface.  Watch data bytes flow to and from the board, so you easily understand the command execution process.  There is no faster or easier way to learn how to automate than Base Station, as it was designed to work with the complete array of communication modules.  Base Station software supports every feature of this device - no other controller manufacturer even comes close to offering this type of software.

ProXR Enhanced Firmware Installed

This board has ProXR Firmware installed that responds to the full ProXR Command Set.  The ProXR Firmware is the industry leading firmware for controlling relays with more commands and functionality than any other board on the market.  The list of commands and parameters this board is capable of is extensive.  ProXR Enhanced is the newly released enhance version of the ProXR Firmware with more commands, more functionality and better control than ever before!  For a detailed list of all the commands with descriptions see our ProXR Enhanced Command Set.

SPST Relay Installed

This board has SPST relays installed.  SPST Single Pole Single Throw Relays simply connect two wires together.  The Common (COM) is the moving part of the relay that comes in contact with the Normally Open (NO) when the coil to the relay is energized.  Wiring is done directly to the Relay terminals using a common 1/4" quick disconnect terminal.  To the right is a picture of the connector that will connect to the relay.

2-Million Cycles

ProXR series controllers are designed for long life, you should expect to get years of service from your controller and literally 2-million cycles from the relays on board.  With a 5-year warranty and a money back guarantee you have nothing to loose!  Place your order now, while everything is in front of you.

Essential Power Requirements

Applying Good clean power to the board is essential for the operation of the board.  Not only for the switching of the relays but the firmware that processes the commands.  Without good steady clean power from a regulated power supply the board simply will not function correctly.  All boards on the site require 12 VDC power.  The PWR12 US power supply is a 120VAC to 12VDC 1.25A 60Hz regulated power supply and it plugs into the barrel connector on the board.  The output connector is a 2.1mm I.D. x 5.5mm O.D. x 9.5mm Female R/A barrel connector.  We also carry an international power supply with interchangeable adapters for international customers. Learn More

This Board is RoHS Compliant

This board is led free and RoHS Compliant.  If your requirements are for RoHS compliant parts this board is manufactured with RoHS compliant led free parts and solder.

Add Relays as Your Needs Grow

The ProXR series controllers are expandable up to 256 total relays.  The controller is fitted with an XR Expansion Port where you can add expansion boards to this relay.  Expansion boards can be added until you reach 256 total relays.  The Expansion Boards get their logic from the main board and will require 12 VDC power. Expansion boards do not need to be the same relay amperage as the main board or other expansion boards.

Read Analog Sensors

This ProXR controller offers a 8-Channel 8/10-Bit Analog to Digital Converter in addition to relay control.  This board is equipped with 8 inputs that can accept an input from 0 to 5 volts.  The boards AD8 Command Set is used to read the analog voltages and converts the Voltage from 0 to 5 Volts DC into numeric value.  The AD8 Command Set supports 8-Bit Analog to Digital Conversion, which converts 0-5VDC to a numeric value from 0 to 255.  The AD8 Command Set also supports 10-Bit Analog to Digital Conversion, which converts 0-5VDC to a numeric value from 0 to 1023.

16 User-Programmable Timers

The ProXR Series controllers have 16 user-programmable timers. Each independent timer can be assigned to any relay, and can be programmed to hold the relay in the On state, or to pulse the relay at the end of the timer.  The ProXR timing features are ideally suited for Watchdog, Keep Alive, and Server Reboot applications, as well as sprinkler systems, gate openers, and lighting applications.  Relay Timing Features support two modes of operation: Duration and Pulse. Duration timing is ideally suited where a device should be activated for a period of time. Pulse timing mode is designed specifically for server reboot applications, whereby, if the timer is not reset periodically by your software, the timer will run out and reboot your computer.

Easy Software Development

Most of our customers write their own program for controlling these devices. Since you can use almost any programming language, you can use one that is most familiar to you so you don't have to learn a new language.  These boards support the Serial Port Profile, meaning they will mount to the computer as a virtual com port. This makes it very easy to send commands to the device.

Plug-In for Visual Studio

The NCD Component Library is a plug-in for the Visual Studio 2005/2008 that greatly simplifies the communications to the NCD product line. The samples can be run in Visual Studio and full customization to your needs.  Over 40 samples included with this free download!  Component Library.

5-Year Warranty/Money Back Guarantee

ProXR Lite series controllers are guaranteed against manufacturing and functionality defects for a full 5 years!  Not to mention a 30-day money back guarantee!  If for any reason you are not happy with a relay purchased from Relay Pros, simply return it within 30 days and we will give you your money back!  Controllers that are damaged by our customers will not of course be warranted under any circumstances.

Induction Suppression

Perhaps the most overlooked aspect of relay control is proper handling of inductive loads. Inductive loads can best be defined as anything with a magnetic coil, such as a motor, solenoid, or a transformer.  Controlling a inductive load using this relay board requires an induction suppression capacitor for each relay being used.  The purpose of this capacitor is to absorb the high voltages generated by inductive loads, blocking them from the contacts of the relay.  Without this capacitor, the lifespan of the relay will be greatly reduced.  Induction can be so severe that it interferes with the logic of the board, causing relay banks to shut down unexpectedly.  For more information view our Induction Suppression Video..

Shipping

The boards sold are brand new units shipped from our office conveniently located in Missouri.  These boards are completely tested before they are released for shipping  With so many boards on our site it is impossible to stock boards, please allow two to three days production time for your order to ship.  If you have any questions please feel free to call our office at 800-960-4287 or e-mail us at sales@relaypros.com.

ProXR Control Is Here!

A more streamlined manufacturing process brings a more durable, reliable and better relay board to the market.  Here's a lists of great features:

User Friendly Board Design
• "Wall Wart" or direct power capability
• Relay status light bar
• XR Expansion Port - easily add more relays
• Easy screw terminal connections
• DPDT Relays with 2 connections per relay

ProXR Features
• Works with the full ProXR Enhanced Command Set
• 8-Channel 8/10-Bit Analog to Digital Converter
• Highly reliable relay with industry leading command set
• 16 programmable timers available

Software Options

Not a programmer and think these boards look great, not to worry we have software to help get you connected and even control the relays with a button on your desktop or by a time schedule!

---

---

---

---

Data Sheets & Quick Start Guides

Below are the Data Sheets Quick Start Guides for this board.  These are the guides that will help you communicate and configure this board.
