Bluetooth Relay 32-Channel 10-Amp ProXRZADSR3210PROXR_ZBT

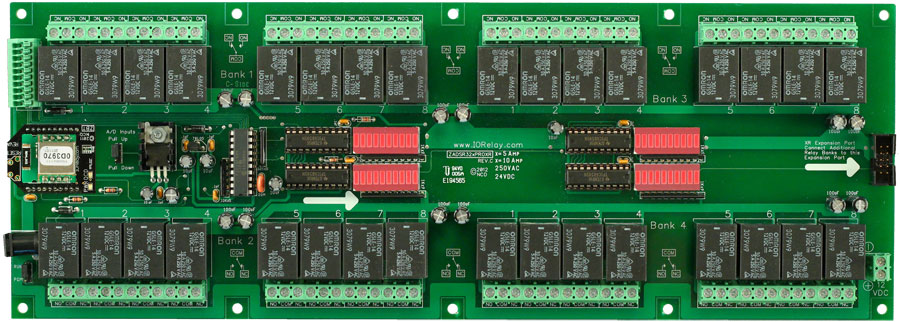

Bluetooth RelayThe ZADSR3210ProXR_ZBT Bluetooth Relay is equipped with a bluetooth interface that will allow you to pair the board with your bluetooth device and control the relays. Pair the board with your Android phone, tablet or computer to send commands over a wireless Bluetooth connection directly to the board.
ZADSR3210ProXR_ZBT The Ideal ChoiceThe ZADSR3210ProXR_ZBT Bluetooth Relay is a great choice if you are looking for a direct wireless connection from your device to the board and are within a 200' to 300' range.
Bluetooth Relay - ProXRThis is a ProXR board meaning that it has the industry leading command set and the board can be expanded to include up to 256 relays. Adding relays is as easy as adding expansion boards as your needs arise.
Bluetooth Relay 32-Channel 10-Amp ProXRZADSR3210PROXR_ZBT
Bluetooth Relay at a Glance
- 32 10-Amp Relays Installed
- Single Pole Double Throw (SPDT) Relay
- Temperature Rating -40° C to 85° C
- Bluetooth Wireless Interface
- 200 to 300 Ft. Wireless Range
- Mounts as a Virtual COM Port on PC/Laptop
- Pair with Android Phone or Tablet
- Industry Leading Command Set
- Send Specific Commands to Trigger Relays
- Trigger Any or All Relays
- Program in Almost any Language
- Read 0 to 5 Volt Sensors
iPhone & iPad Compatibility
Please Note: Apple encrypts the Bluetooth signal on an iPhone and iPad therefore bluetooth boards will not communicate with them. We recommend the web interface option for browser based interface for the iPhone or iPad users.
Bluetooth RelayBluetooth is an ideal wireless platform relay control within a short range. Bluetooth Relays will be paired with your computer, smart phone or tablet using the Bluetooth connection on your device. This involves traditional pairing methods you are already familiar with. Once paired, the ZADSR3210PROXR_ZBT will appear in your Bluetooth control panel, and a new COM port will be available for computer users. Once the connection has been established Android users can download the free app from Google Play and start controlling the relay installed.
ZBT ModulesThis board is equipped with a ZBT Module. The ZBT communications module adds Bluetooth communications to the board. There are two module options available, for more on each module see Bluetooth Module Options The ZBT module is powered from the board. The board itself will require 12 volts of power and can be hard wired or you can purchase a "wall wart" type power supply.
Bluetooth ConfigurationConfiguration is easy with the optional Bluetooth ZigMo Modem. Simply connect it to the USB port of your computer with the supplied cable. The Bluetooth ZigMo is available as an option when you purchase your Bluetooth controller. The ZBT module will pull off the board and can be installed in the ZigMo for configuration. You can then configure the baud rate and password settings if you require a secure wireless control. After configuration the ZBT module can be re-installed in your board and it's ready to pair with your device.
Sending CommandsFor computer users Base Station Software is available at no charge to get you up and running fast (more on Base Station below). Once powered up, the controller waits for a command. A command consists of a few bytes of data in numerical format (ProXR Enhanced Command Set) usually between 2 and 6 bytes. Once the command has been received, the controller processes the command, and sends you back ASCII character code 85 to signal the completion of your command. If a command was sent to read the status of the relay the status is sent back.
Bluetooth on Apple ComputersCommunicating to to this board on a Mac is possible, although it can be a bit tricky. The Bluetooth Mac Terminal video below shows the steps to establish Bluetooth communication and controlling the relay on a Mac.
Bluetooth on iPhone or iPad Unfortunately the iPhone and iPad are a different matter. Apple encrypts the Bluetooth signal on an iPhone and iPad and therefore this board will not communicate with the iPhone or iPad. We recommend the Web-i browser based interface for the iPhone or iPad users.
Bluetooth Relay Videos
ProXR Expandable Board
This Board includes the XR Expansion Port for adding additional relays to the board. The XR Expansion Boards can be added to control up to 256 relays on this board!
The ProXR SPDT Relay Board
ProXR RelayWe've looked at the interface now let's take a look at the board design and programming. The ProXR series controllers are manufactured by hand for a highly accurate and reliable design. Equipped with the XR Expansion Port additional relays can be easily added. Fully tested before they leave the production facility each ProXR controller is ready to stand up to rigorous demands from heat, cold or vibration. The best test of all is the numerous boards in the field from customers all over the world in all sorts of conditions. Take it from us, these controllers will hold up!
Easy Software DevelopmentMost of our customers write their own program for controlling these devices. Since you can use almost any programming language, you can use one that is most familiar to you so you don't have to learn a new language. These boards support the Serial Port Profile, meaning they will mount to the computer as a virtual com port. This makes it very easy to send commands to the board. Not a programmer, check out N-Button! Software that allows you to configure buttons to control relays and read the status of those relays without programming using point-and-click action. Click Here for More
Base Station SoftwareBase Station Software was designed to help you learn the ProXR command set. Explore ProXR features using it's Graphical User Interface. Watch data bytes flow to and from the board, so you easily understand the command execution process. There is no faster or easier way to learn how to automate than Base Station, as it was designed to work with the complete array of communication modules. Base Station software supports every feature of this device - no other controller manufacturer even comes close to offering this type of software.
ProXR Enhanced Firmware InstalledThis board has ProXR Firmware installed that responds to the full ProXR Command Set. The ProXR Firmware is the industry leading firmware for controlling relays with more commands and functionality than any other board on the market. The list of commands and parameters this board is capable of is extensive. ProXR Enhanced is the newly released enhance version of the ProXR Firmware with more commands, more functionality and better control than ever before! For a detailed list of all the commands with descriptions see our ProXR Enhanced Command Set.
SPDT Relay InstalledThis device has SPDT relays installed. SPDT Single Pole Double Throw Relays have three connections - Common, Normally Open, and Normally Closed. When the relay is off, the common is connected to the normally closed connection of the relay. When the relay coil is energized, the Common swings to the Normally Open Connection of the Relay. You can wire the device you are switching to either the Normally Open or the Normally Closed position using screw terminal connections. The maximum guage wire the terminal can handle is 14 ga but we have used up to 12 ga solid core for several applications with no issues.
2-Million CyclesProXR series controllers are designed for long life, you should expect to get years of service from your controller and literally 2-million cycles from the relays on board. With a 5-year warranty and a money back guarantee you have nothing to loose! Place your order now, while everything is in front of you.
Essential Power RequirementsApplying Good clean power to the board is essential for the operation of the board. Not only for the switching of the relays but the firmware that processes the commands. Without good steady clean power from a regulated power supply the board simply will not function correctly. All boards on the site require 12 VDC power. The PWR12 US power supply is a 120VAC to 12VDC 1.25A 60Hz regulated power supply and it plugs into the barrel connector on the board. The output connector is a 2.1mm I.D. x 5.5mm O.D. x 9.5mm Female R/A barrel connector. We also carry an international power supply with interchangeable adapters for international customers. Learn More
This Board is RoHS CompliantThis board is led free and RoHS Compliant. If your requirements are for RoHS compliant parts this board is manufactured with RoHS compliant led free parts and solder.
Add Relays as Your Needs GrowThe ProXR series controllers are expandable up to 256 total relays. The controller is fitted with an XR Expansion Port where you can add expansion boards to this relay. Expansion boards can be added until you reach 256 total relays. The Expansion Boards get their logic from the main board and will require 12 VDC power. Expansion boards do not need to be the same relay amperage as the main board or other expansion boards.
Read Analog SensorsThis ProXR controller offers a 8-Channel 8/10-Bit Analog to Digital Converter in addition to relay control. This board is equipped with 8 inputs that can accept an input from 0 to 5 volts. The boards AD8 Command Set is used to read the analog voltages and converts the Voltage from 0 to 5 Volts DC into numeric value. The AD8 Command Set supports 8-Bit Analog to Digital Conversion, which converts 0-5VDC to a numeric value from 0 to 255. The AD8 Command Set also supports 10-Bit Analog to Digital Conversion, which converts 0-5VDC to a numeric value from 0 to 1023.
16 User-Programmable TimersThe ProXR Series controllers have 16 user-programmable timers. Each independent timer can be assigned to any relay, and can be programmed to hold the relay in the On state, or to pulse the relay at the end of the timer. The ProXR timing features are ideally suited for Watchdog, Keep Alive, and Server Reboot applications, as well as sprinkler systems, gate openers, and lighting applications. Relay Timing Features support two modes of operation: Duration and Pulse. Duration timing is ideally suited where a device should be activated for a period of time. Pulse timing mode is designed specifically for server reboot applications, whereby, if the timer is not reset periodically by your software, the timer will run out and reboot your computer.
5-Year Warranty/Money Back GuaranteeProXR Lite series controllers are guaranteed against manufacturing and functionality defects for a full 5 years! Not to mention a 30-day money back guarantee! If for any reason you are not happy with a relay purchased from Relay Pros, simply return it within 30 days and we will give you your money back! Controllers that are damaged by our customers will not of course be warranted under any circumstances.
Induction SuppressionPerhaps the most overlooked aspect of relay control is proper handling of inductive loads. Inductive loads can best be defined as anything with a magnetic coil, such as a motor, solenoid, or a transformer. Controlling a inductive load using this relay board requires an induction suppression capacitor for each relay being used. The purpose of this capacitor is to absorb the high voltages generated by inductive loads, blocking them from the contacts of the relay. Without this capacitor, the lifespan of the relay will be greatly reduced. Induction can be so severe that it interferes with the logic of the board, causing relay banks to shut down unexpectedly. For more information view our Induction Suppression Video.
ShippingThe boards sold are brand new units shipped from our office conveniently located in Missouri. These boards are completely tested before they are released for shipping With so many boards on our site it is impossible to stock boards, please allow two to three days production time for your order to ship. If you have any questions please feel free to call our office at 800-960-4287 or e-mail us at email@example.com.
ProXR Control Is Here!A more streamlined manufacturing process brings a more durable, reliable and better relay board to the market. Here's a lists of great features:
- User Friendly Board Design
- "Wall Wart" or direct power capability
- Relay status light bar
- XR Expansion Port - easily add more relays
- Easy screw terminal connections
- ProXR Features
- Industry Leading ProXR Command Set
- 8-Channel 8/10-Bit Analog to Digital Converter
- Highly Reliable Board
- Assign up to 16 Programmable Timers
Power Supply AvailableThe PWR12 is regulated power supply providing clean power necessary for the performance of these boards. The PWR12 US power supply is a 120VAC to 12VDC 1.25A 60Hz regulated power supply and it plugs into the barrel connector on the board. The output connector is a 2.1mm I.D. x 5.5mm O.D. x 9.5mm R/A barrel connector.
Click Here for More
Bluetooth Configuration KitThe Configuration Kit (ZigMo) plugs into the UPS port on your PC and will mount as a COM port. The ZBT module will pull off the board and can be installed in the ZigMo for configuration. You can then configure the baud rate and password settings if you require a secure wireless control. Configuration is done with Base Station Software, a free download. Click Here for More
Internal AntennaBluetooth Module 200' (60 Meters) Range with Internal Antenna. The ZBT communications module adds Bluetooth communications to the board.
Click Here for More
- Reliable 200' Range
- Internal Integrated Antenna
- Cannot be Removed/Replaced w/External Antenna
- Line-Of-Site Operation for Optimal Range
External AntennaBluetooth Module 300' (91 Meters) Range with External Antenna. Use When Board is in an Enclosure or when Antenna Needs to be Positioned to "See" Computer/Smart Phone/Tablet for better range & reliability. Click Here for More
- Reliable 300' Range
- 5" Antenna
- Snap-On 5" Pigtail
- Antenna Screws Onto Pigtail
Induction SuppressionControlling an inductive load using our relay controllers requires the use of induction suppression capacitors. The purpose of this capacitor is to absorb the high voltages generated by inductive loads, blocking them from the contacts of the relay. Without this capacitor, the lifespan of the relay will be greatly reduced. Induction can be so severe that it electrically interferes with the microprocessor logic of our controllers, causing relay banks to shut themselves down unexpectedly. Click Here for More
N-Button ProN-Button Pro software allows you to create buttons to control relays and show the status without programming. Create meters for reading the variable input sensors connected to the AD inputs of this board in real time! Enter the IP address of the board and you are communicating from a computer anywhere on the network! Click Here for More
The software on this tab is from NCD or a 3rd Party Software Developer specifically developed for the boards on this site.
Software OptionsNot a programmer and think these boards look great, not to worry we have software to help get you connected and even control the relays with a button on your desktop or by a time schedule!
Base Station SoftwareBase Station Software is our reference tool for designing and testing all currently manufactured NCD Devices. Base Station will assist you in learning how any NCD device functions and will provide valuable diagnostic tools to help determine if your controller is functioning as designed. Base Station software exercises every supported feature of every supported device. Base Station Software was designed to help you learn the ProXR command set. Explore ProXR features using our Graphical User Interface. Watch data bytes flow to and from the board, so you easily understand the command execution process. There is no faster or easier way to learn how to automate than Base Station, it is designed to work with our complete array of communication modules, including Wireless, Ethernet, USB, RS-232, and more. You only need a Windows 8 or 10 Computer to Run Base Station, no other relay control board even comes close to offering this type of software!
Board IdentificationA window will open labeled "Device Identification Data". This window contains important "Read-Only" information about your device. Note the "Documentation Related to this Controller" field. This is a compilation of all articles relevant to your device. Click on an item in the list to view. You will need an Internet connection to access this information.
Board Command SetsBase Station software asks the controller which command sets are supported. The supported command sets are listed when you run the Base Station software application. Some controllers may show more command sets while other controllers may show fewer command sets. The Base Station program will decide which command sets apply to your particular controller. This allows our software to scale with the product line.
Visit our Base Station Page
Point-And-Click SoftwareN-Button is software that allows you to configure buttons to control relays and read the status of those relays without programming using point-and-click action. You can also create meters for reading variable input sensors connected to the board in real time!
USB and Network CompatibleN-Button Lite supports Serial Port/ USB and Network connection between the PC and the relay board. Add any type of included N-Button Lite widgets with N-Button Lite Manager. It's also very easy to modify the widget's properties to get the button and configuration you are looking for using the full command set!
Lite vs. ProN-Button Lite has all the buttons and widgets of the full version but is limited to 16 widgets. Created for users with smaller needs to save money, N-Button Lite is a powerful tool for controlling relays or reading A/D inputs with up to 16 widgets. If you want to add more than 16 widgets, a Pro version is available and supports up to 255 widgets.
Create Desktop MetersDesktop Meters can be created for real time level readings of any variable input sensor. "It's like having a meter right on your desk for constant monitoring". Meters can be created for temperature sensors, moisture sensors, light meters and others. Read the sensor and create relay buttons that will allow at-a-glance determination of the relay status. Best of all the increments on the meter can be fully customized to fit your needs. Choose an Analog to Digital controller (look for AD in the part number) purchase a copy of N-Button or N-Button Lite and you can read the A/D levels right on your desktop! If you have an application where you need to track sensor levels you will have a live real time meter right on your desktop!
Visit our N-Button Page
Time Schedule ControlRelay Timer Software allows you control each relay independently from a time schedule you create! The software can be installed on a server or PC and uses the computers time for an accurate relay control.
Control relay in recurrent time sequenceThanks to protocol of ProXR & ProXR Lite boards it is possible to update 8 relays at one time. If speed is a requirement it only take about 30 ms to update 8 relays. In multiple relay applications Relay Timer calculates all relays’ status together, even though each of them work separately.
Take Manual ControlYou can take manual control of any relay at any time to interrupt the schedule and control a relay. Automatically switch back to Auto Mode and resume the schedule manually or set a fixed time to return to the schedule.
Time Sequence ControlQuicktimer Software supports turning on/off each relay automatically during the predetermined duration. First set the duration that you want the sequence to be active. Time periods can then be set where the relay is energized within the set duration.
Control Relays by Time DurationQuick Timer is a software program specifically developed for the relay boards on our site. The software will allow you to control the duration the relays will be energized. This software is not designed to control relay at a specific time of day but rather a time duration. The time sequence is manually started and can run through a set sequence and stop of be set to loop until manually stopped.
Control Within a Predetermined DurationQuick Timer Software supports controlling each relay automatically during the predetermined duration. A duration can be set first then each relay on the board can then be controlled with their own time sequence within the set time duration.
Visual Studio SamplesThe NCD Component Library is a plug-in for the Visual Studio 2005/2008 that greatly simplifies the communications to the NCD product line. The samples can be run in Visual Studio and fully customizable to your needs. Over 40 fully functional fully working samples are included in this free download.
Visit our Component Library Page to view all the samples available.
Data Sheets & Quick Start GuidesBelow are the Data Sheets Quick Start Guides for this board. These are the guides that will help you communicate and configure this board.
Bluetooth Quick Start Guide
Click to Download
ProXR Quick Start Guide
Click to Download
Base Station Quick Start
Click to Download
10-Amp Relay Data Sheet
Click to Download
Bluetooth Data Sheet
Click to Download
AD Quick Start Guide
Click to Download
Hardware Reference Guide
Click to Download
