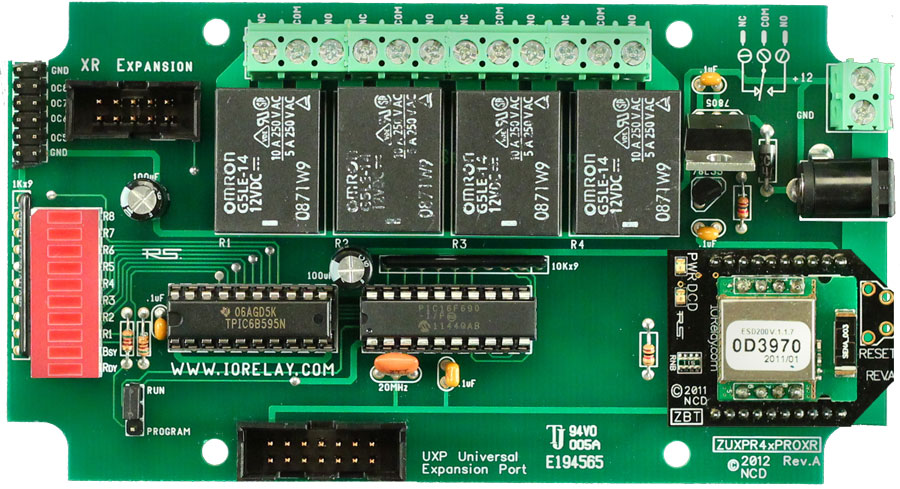

Bluetooth Controlled Relay
The ZADR410ProXR_ZBT Bluetooth Controlled Relay is equipped with the NexGen Bluetooth/WiFi interface that will allow you control relays wirelessly
over a Bluetooth connection. By implementing the Bluetooth Serial Port Profile, the board will appear to your computer as a
standard COM port, making it easy to communicate wireless data via Bluetooth between the PC and the device. Users have the
ability to set the Bluetooth discovery name and PIN number via the integrated Web Page using Soft AP mode.
NexGen Bluetooth Communication
The ZADR410ProXR_ZBT features the NexGen Bluetooth/WiFi communications module that modernizes connectivity by combining WiFi, Bluetooth, USB, and MQTT
Communications into a single module. The NexGen module includes firmware that focuses on the most needed features while retaining
the flexibility to adapt to just about any application. Using the integrated web page in Soft AP mode, users have the ability to configure
the NexGen module by enabling and disabling features as needed.
Bluetooth Controlled Relay - ProXR
This is a ProXR board meaning that it has the industry leading command set and the board can be expanded to include up to 256 relays.
Adding relays is as easy as adding expansion boards as your needs arise.
