Ethernet Relay Switch
The ZADR85DPDTProXR_ETHERNET Ethernet Relay Switch has the New 3rd Gerneration Ethernet interface installed that plugs intro a router using a standard CAT5
cable where it is assigned an IP address. Once on the network, commands can be sent to control the relay from within the network or
from outside over the internet. The NCD5500 Ethernet module was customized specifically for use with NCD devices to ensure optimal
ZADR85DPDTProXR_ETHERNET The Ideal Choice
The ZADR85DPDTProXR_ETHERNET Ethernet Relay Switch can be configured to automatically close the socket after a programmable timeout or to leave the socket
open. A blue LED light indicates an open socket connection. Program the Baud Rate from 9600 to 115.2K Baud and communicate over
the default TCP port 2101. This device also supports Static IP Addresses, DHCP, and has the ability to recover back to factory
default settings with a simple press of a button!
Ethernet Relay Switch - ProXR

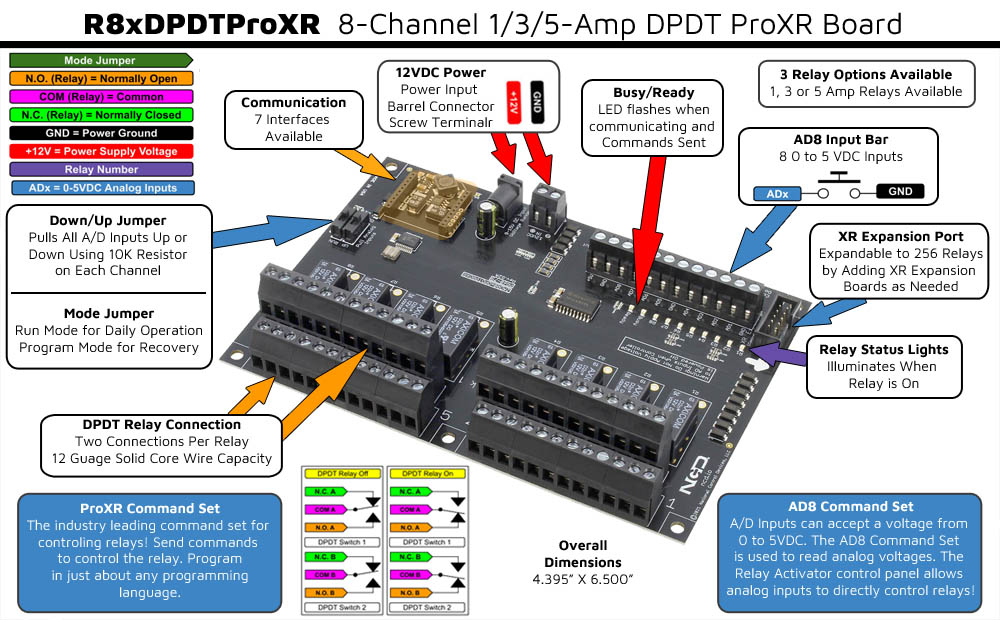

This is a ProXR board meaning that it has the industry leading command set and the board can be expanded to include up to 256 relays.
Adding relays is as easy as easy as adding expansion boards as your needs arise.
