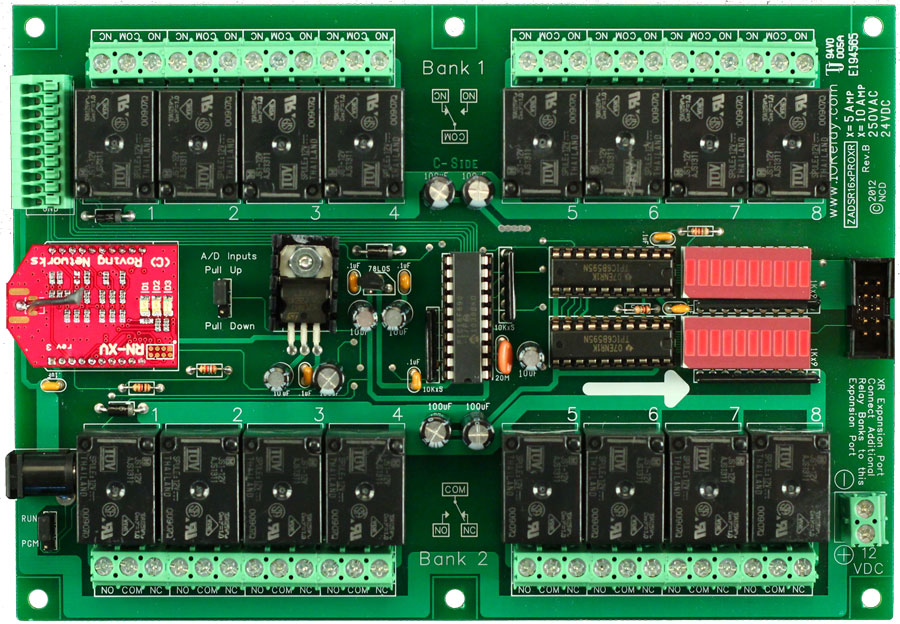

WiFi Relay Board
The ZADR165ProXR_WIFI WiFi Relay Board is equipped with the NexGen Wi-Fi interface that will allow you control relays over the network. The Wi-Fi
interface supports 2.4GHz WiFi Communications IEEE 802.11 b/g/n, Secure WPA/WPA2/WPA2-Enterprise and WPS Wi-Fi authentication, with Soft AP
Web Interface for Settings Configuration. Communicate with Devices via TCP, UDP, MQTT, HTTP, Bluetooth, or USB!
NexGen WiFi Communication
The ZADR165ProXR_WIFI features the NexGen WiFi communications module that modernizes connectivity by combining WiFi, Bluetooth, USB, and MQTT
Communications into a single module. The NexGen WiFi module includes firmware that focuses on the most needed features while retaining
the flexibility to adapt to just about any application. Using the integrated web page in Soft AP mode, users have the ability to configure
the NexGen WiFi module by enabling and disabling features as needed.
WiFi Relay Board - ProXR
This is a ProXR board meaning that it has the industry leading command set and the board can be expanded to include up to 256 relays.
Adding relays is as easy as adding expansion boards as your needs arise.
