USB Relay

USB Relay Switch at a Glance...

  • 8 Relays Installed on a Circuit Board
      - ProXR Lite Not Expandable
      - ProXR Expandable to 256 Relays
  • Onboard USB Interface Module
      - Plugs Directly into USB Port
      - Mounts as a Virtual COM Port
  • Industry Leading ProXR Command Set
      - Program in Almost any Language
      - Send Specific Commands to Control Relays
      - Control Any or All Relays
      - Toggle, Flash and Timing Commands
  • ProXR AD8 Command Set
      - Read 0 to 5 Volt Sensors
      - Monitor External Sensors or Contact Closure
      - Relay Activator, Inputs Directly Control Relays

Selecting The USB Interface

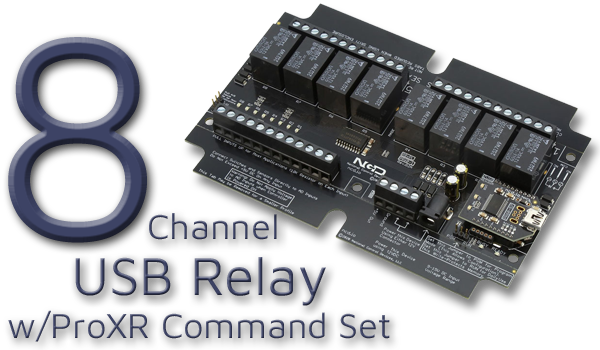

USB Relay SwitchBy selecting the USB interface you will be sending commands through the USB port of your computer to the board.  Boards on this page are equipped with a ZUSB communications module that adds USB communications to the board.  A command consists of a few bytes of data in numerical format usually between 2 and 6 bytes.  Once the command has been received, the controller processes the command and the relay activates.

Selecting a USB Relay Switch

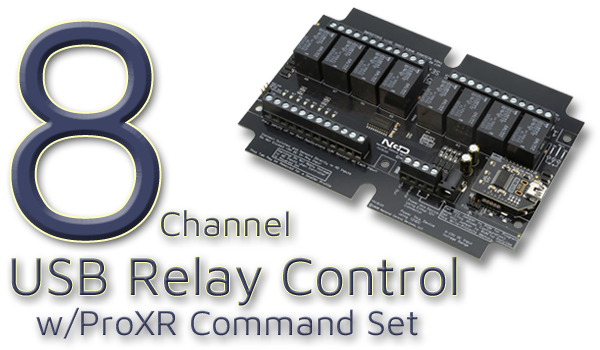

Below you will find the 8-channel USB Relay Switches that are available.  The difference being the amperage of the relays installed and the type of relay.  Choose the controller that fits the amperage you are switching.  You will find SPDT relays in the 5, 10 and 20 amp versions and an SPST version in 30 amp.  DPDT versions are also available with 1, 3 or 5 amp relays installed.  For more information on selecting the correct relay for your application see Choosing a Proper Amperage.

Selecting a USB Relay Series

The 8-Channel boards are available in the ProXR Lite and ProXR versions. Both versions have the same firmware installed and accept the same ProXR command set, the industry leading command set for controlling relays.  The ProXR lite version is non-expandable, the ProXR version is expandable to 256 relays.  When you find your controller click on the Full Description link to view full specs, watch setup videos, download software and purchase.
