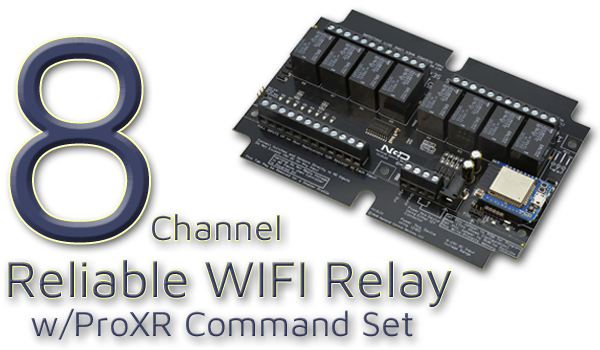

WiFi Controlled Relay

WiFi Controlled Relay at a Glance...

  • 8 Relays Installed on a Single Circuit Board
      - ProXR Lite: Non-expandable
      - ProXR: Expandable up to 256 relays
  • Next-Generation WiFi Connectivity
      - 2.4GHz WiFi (IEEE 802.11 b/g/nr)
      - TCP, HTTP, Bluetooth, USB, UDP & MQTT support
      - WPA/WPA2/WPA2-Enterprise & WPS security
      - DHCP or Static IP configuration
  • Built-In Web Control
      - Simple On/Off relay switching
      - Works with any modern web browser
  • Industry-Leading ProXR Command Set
      - Program in almost any language
      - Send precise relay control commands
      - Control one relay or all relays at once
      - Toggle, flash, and timing functions
  • ProXR AD8 Sensor Commands
      - Read 0-5V analog sensors
      - Monitor contact closures & external sensors
      - Trigger relays directly from inputs

Selecting the Proper Amperage

For more information on selecting a board with the correct relay amperage for your application see Choosing a Proper Amperage.

Looking for an 8-channel WiFi relay board? Choose from expandable ProXR models, non-expandable ProXR Lite versions, and DPDT relay options for advanced switching needs.

NextGen WiFi Relay Interface

The NextGen WiFi is NCD's second-generation wireless communications module, combining WiFi, Bluetooth, USB, and MQTT into a single, powerful solution. Its streamlined firmware focuses on the most essential features while staying flexible enough for nearly any application.

Using the built-in Soft AP web interface, you can easily configure the module, enable or disable features, and tailor the system to your needs - no extra software required.

NextGen Web Relay

The NextGen WiFi module includes a built-in web-based relay control interface that works in any browser. Simply select the web page that matches the number of relays installed on your board, and you're ready for basic on/off control - no apps or servers required.

Choosing Your 8-Channel WiFi Relay

WiFi Controlled Relay8-channel WiFi relay boards are available in ProXR Lite and ProXR versions:
  • ProXR Lite - Non-expandable, streamlined design
  • ProXR - Expandable up to 256 relays
Both versions use the same firmware and support the full ProXR Command Set, giving you identical control capabilities. The difference is expandability.

Select Your Relay Type & Amperage

Choose the 8-channel WiFi relay controller that matches your load requirements:
  • SPDT Relays: 5A, 10A, or 20A
  • SPST Relays: 30A
  • DPDT Relays: 1A, 3A, or 5A (ProXR only)
Need help selecting the right relay amperage?
Use our Choosing a Proper Amperage to make the right call for your application.
ProXR Lite vs ProXR
  • ProXR Lite: Non-expandable, streamlined design for fixed-size projects
  • ProXR: Expandable up to 256 relays for growing systems
  • Both: Same firmware, same ProXR Command Set, same control features
💡 Relay Pros Pro Tip:
If you think your project might grow, choose the ProXR version. You'll start with 8 relays today and expand up to 256 later - without replacing your controller.
